开关模式? NPN双极功率晶体管开关电源的应用 SWITCHMODE NPN Bipolar Power Transistor For Switching Power Supply Applications
SWITCHMODE™ NPN Bipolar Power Transistor
For Switching Power Supply Applications
The have an applications specific state−of−the−art die designed for use in 220 V line operated Switchmode Power supplies and electronic light ballasts.
Features
• Improved Efficiency Due to Low Base Drive Requirements:
♦ High and Flat DC Current Gain hFE
♦ Fast Switching
♦ No Coil Required in Base Circuit for Turn−Off No Current Tail
• Tight Parametric Distributions are Consistent Lot−to−Lot

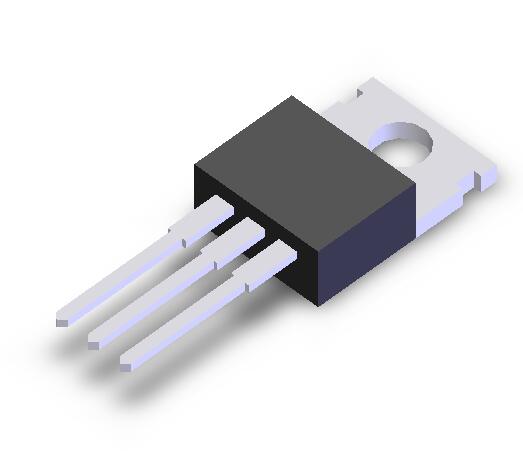

• Standard TO−220
• These Devices are Pb−Free and are RoHS Compliant额定电压DC 450 V
额定电流 2.00 A
极性 N-Channel, NPN
耗散功率 50 W
增益频宽积 13 MHz
击穿电压集电极-发射极 450 V
集电极最大允许电流 2A
最小电流放大倍数hFE 14 @200mA, 5V
额定功率Max 50 W
工作温度Max 150 ℃
工作温度Min 65 ℃
耗散功率Max 50000 mW
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.28 mm
宽度 4.82 mm
高度 9.28 mm
封装 TO-220-3
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MJE18002G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MJE13007G 安森美 | 类似代替 | MJE18002G和MJE13007G的区别 |
BDX53CTU 安森美 | 类似代替 | MJE18002G和BDX53CTU的区别 |
TIP142TTU 安森美 | 类似代替 | MJE18002G和TIP142TTU的区别 |
