MAX810 系列 4.63 V 140 ms 3 引脚 微处理器 复位监控器 - SOT-23-3
Thanks to , your circuit can return to normal functionality in case of processor failure with the microprocessor supervisory circuit. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.56 V and a maximum of 4.7 V. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 105 °C.
电源电压DC 1.00V min
无卤素状态 Halogen Free
供电电流 0.0025 mA
阈值电压 4.63 V
复位电压Min 4.56 V
复位电压Max 4.7 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

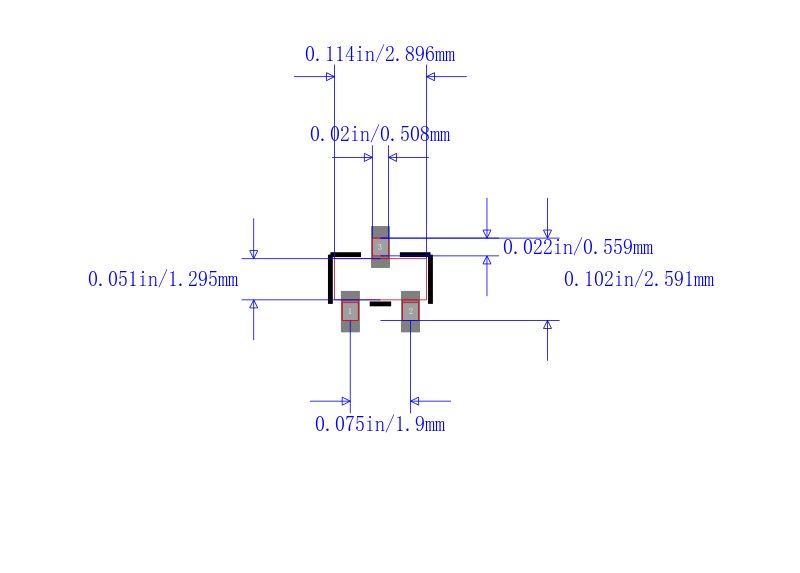

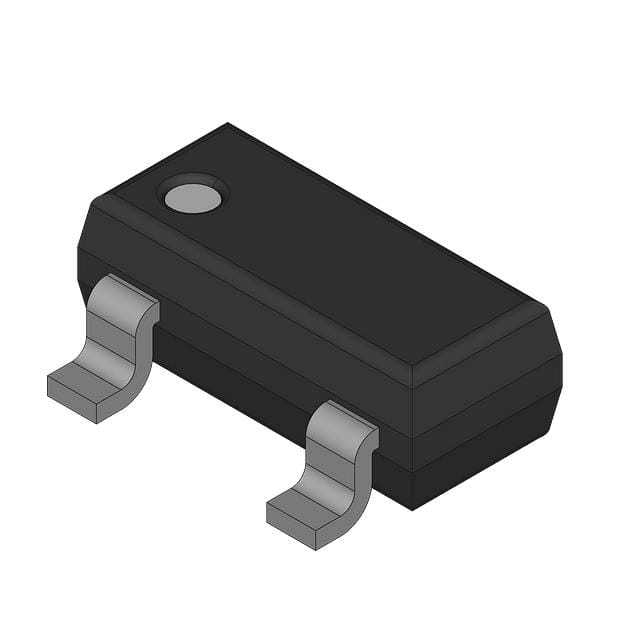

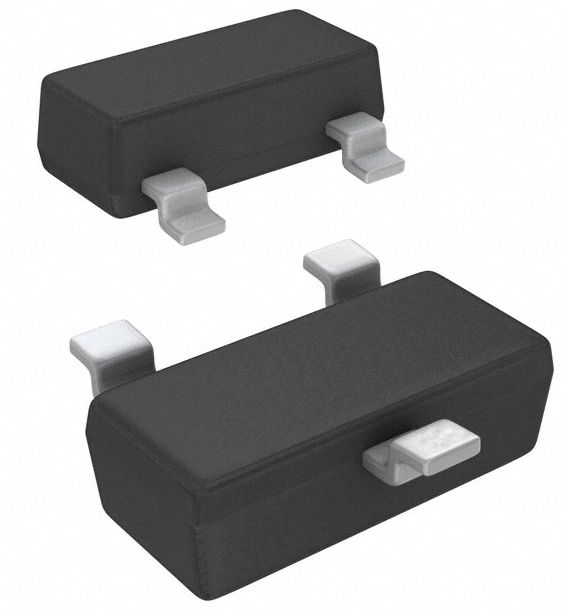

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.94 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Powertrain, Infotainment, Instrument Cluster, Nagivator, Embedded Systems, Battery Powered Equipment, Computers, Braking, Body Electronic, Critical Microprocessor Power Supply Monitoring, Occupant Protection, Occupant Comfort
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8542390000
