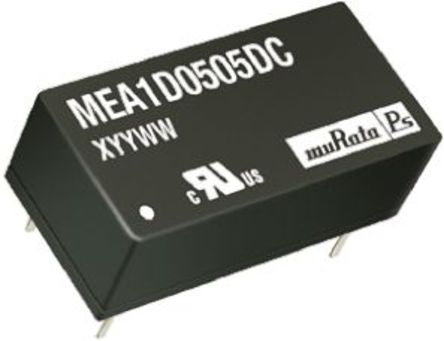

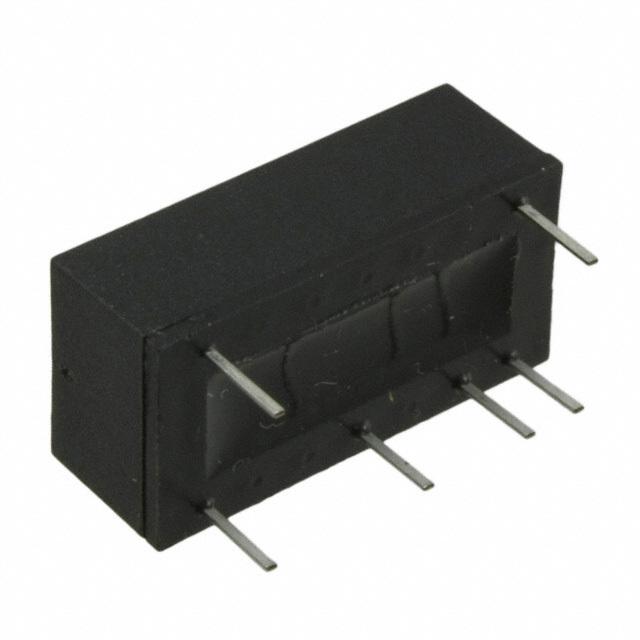

MEA1D1512DC

Murata 1W DIP Dual Output Unregulated Isolated DC-DC Converter - MEA1 Series1W dual output unregulated DC/DC converters with galvanic isolation to reduce switching noise. These 1W dual output 1 kVDC isolated unregulated DC/DC converters have a wide temperature performance at full load, do not require a heatsink or any external components, have an industry standard pin-out and power sharing on output. All of the rated power may be drawn from a single output providing the total load doesn"t exceed 1W. An ideal application for these 1W dual output 1 kVDC isolated unregulated DC/DC converters is the provision of dual rail supplies.Industry standard pin-out Heatsink not required Power sharing on output Efficiency of up to 89.5 % Power density to 85W/cm3 Wide temperature performance at full 1W load; -40° to 85°C Fully encapsulated with toroidal magnetics No external components required No electrolytic or tantalum capacitors UL 94V-0 package material ### 注Power derates above 85°C### 认可cULus### 标准UL 60950### Murata 电源解决方案 - DIP

Murata 1W DIP Dual Output Unregulated Isolated DC-DC Converter - MEA1 Series

1W 双输出无稳压直流/直流转换器，具有电化隔离，可减少切换噪音。这些 1W 双输出 1kV 直流无稳压直流/直流转换器具有很宽的满负载时温度性能，无需散热器或任何外部组件，具有工业标准引脚和输出功率分配。只要总负载不超过 1W，所有额定功率均可从单个输出获得。这些 1W 双输出 1kV 直流隔离无稳压直流/直流转换器的理想应用是供应双导轨电源。

工业标准引脚

不需要散热器

输出上共享功率

效率高达 89.5%

功率密度达到 85W/cm3

1W 满负载时温度性能较宽，-40°C 至 85°C

完全封装，带环形磁铁

无需外部组件

无电解或钽电容器

包装采用 UL 94V-0 材料

### 注

Power derates above 85°C

### 标准

UL 60950

### 认可

cULus
