74HC 系列,ON Semiconductor高速 CMOS 逻辑 工作电压 2.0 - 6.0 兼容性:输入 CMOS、输出 CMOS ### 74HC 系列
74HC 系列,
高速 CMOS 逻辑
工作电压:2 至 6 V
兼容性:输入 CMOS、输出 CMOS
得捷:
D LATCH, HC/UH SERIES, 1-FUNC, L
立创商城:
8 位可寻址锁存 1/8 解码器
欧时:
### 74HC 系列,ON Semiconductor高速 CMOS 逻辑 工作电压 2.0 - 6.0 兼容性:输入 CMOS、输出 CMOS ### 74HC 系列
e络盟:
锁扣, 74HC259, 寻址, CMOS, 100 ns, SOIC
艾睿:
This d-type MC74HC259ADR2G low-level latch manufactured by ON Semiconductor contains real time information and can be pushed through it once it is enabled. This latch has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
Allied Electronics:
MC74HC259ADR2G Octal Latch, AddressableD Type, 3 State, 2 to 6 V, 16-Pin SOIC
安富利:
Latch Addressable 8-CH D-Type 16-Pin SOIC T/R
Chip1Stop:
Latch Addressable 8-CH D-Type 16-Pin SOIC T/R
Verical:
Latch Addressable 8-CH D-Type Automotive 16-Pin SOIC T/R
Newark:
# ON SEMICONDUCTOR MC74HC259ADR2G ADDRESSABLE LATCH DECODER, 8BIT, SOIC-16 New
力源芯城:
8位1-8译码器
Win Source:
D-Type, Addressable 1 Channel 1:8 IC Standard 16-SOIC
无卤素状态 Halogen Free
输出接口数 8
针脚数 16
位数 8
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

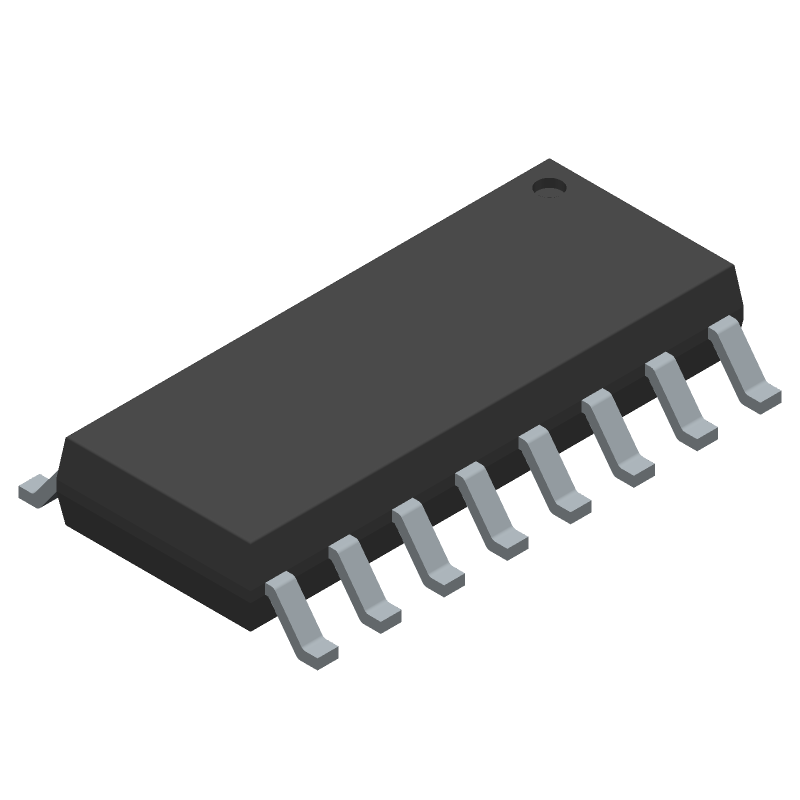

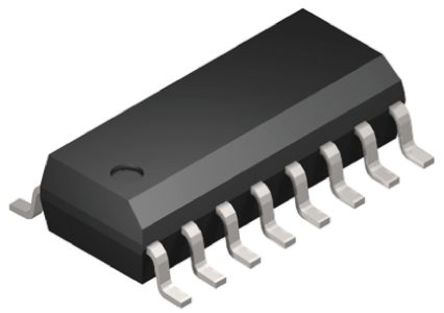

封装 SOIC-16
长度 10 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
重量 0.0106557926608 kg
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Desktop
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74HC259ADR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC259ADG 安森美 | 完全替代 | MC74HC259ADR2G和MC74HC259ADG的区别 |
CD74HC259M 德州仪器 | 类似代替 | MC74HC259ADR2G和CD74HC259M的区别 |
CD74HC259M96 德州仪器 | 类似代替 | MC74HC259ADR2G和CD74HC259M96的区别 |
