MAX4895EETE+

MAXIM INTEGRATED PRODUCTS  MAX4895EETE+  芯片, 模拟开关

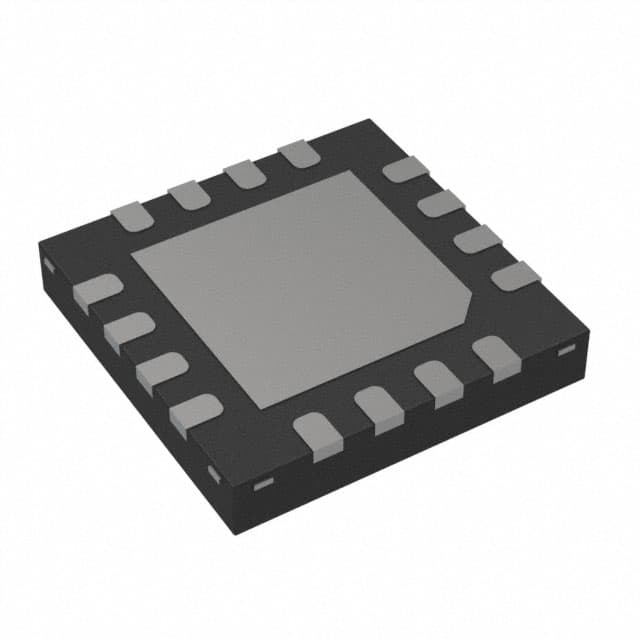

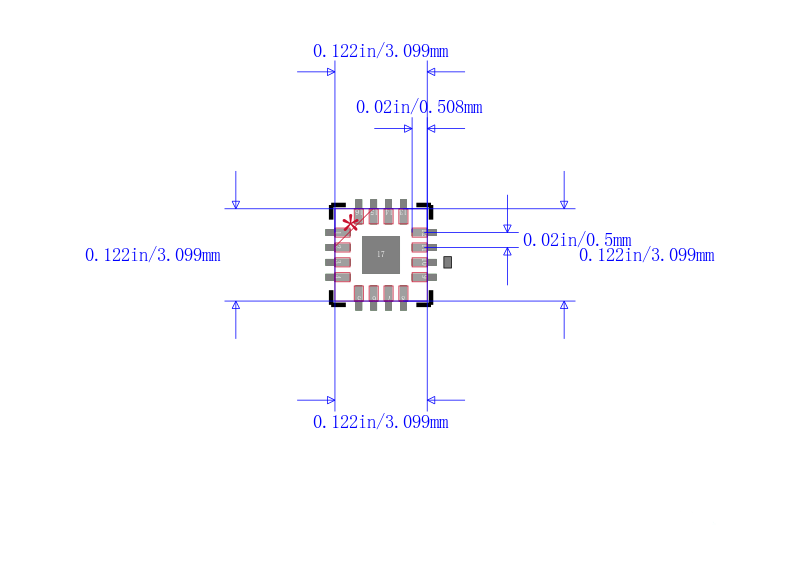

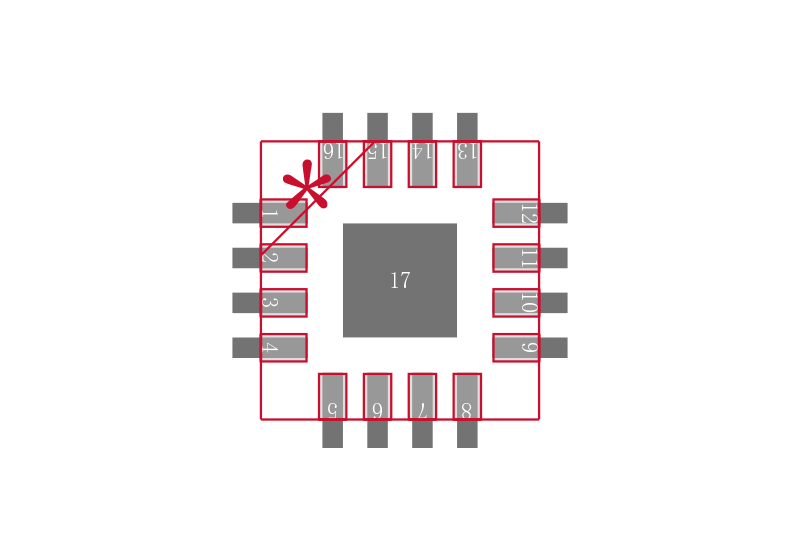

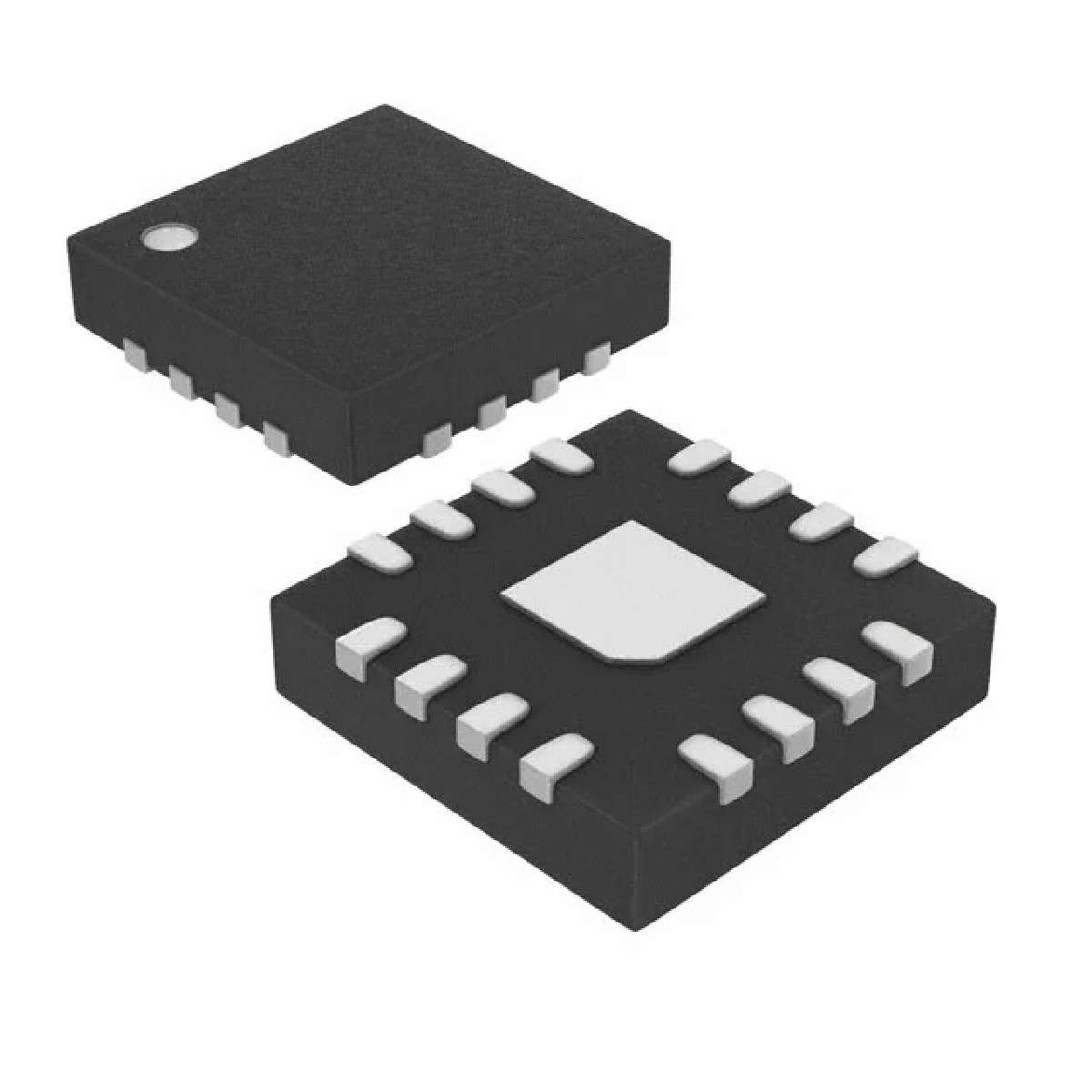

The is a VGA port protector in 16 pin TQFN package. It integrates level translating buffers and features R, G, B port protection for VGA signals. It has H, V horizontal, vertical translating buffers that take low-level CMOS inputs from graphics outputs to meet full +5V, TTL-compatible outputs. Each output can drive ±10mA and meet the VESA specification. In addition, device takes +5V, direct digital control DDC signals and translates it to lower level required by graphics device. This level is set by user by connecting VL to graphics output supply. The R, G, B terminals protect graphics output pins against electrostatic discharge ESD events. All seven outputs have high-level ESD protection. It is used in notebook computers, desktops, servers and graphics cards.

.

Supply voltage range is 4.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

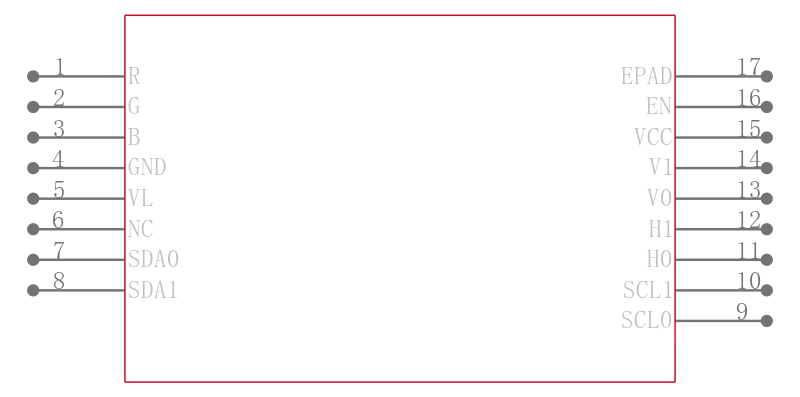

ESD protection on H1, V1, SDA1, SCL1, R, G and B, ±15KV-human body model

.

±8KV-IEC 61000-4-2, contact discharge

.

Low quiescent current IQ is

.

Low 3pF max capacitance R, G, B ports

.

DDC level shifting protection and isolation

.

Horizontal sync, vertical sync level shifting/ buffering

.

Input compatible with VL, ±10mA drive on each H, V terminal

.

Output full +5V TTL compatible per VESA
