MAX3393EEUD+

MAXIM INTEGRATED PRODUCTS  MAX3393EEUD+  芯片, 逻辑转换器

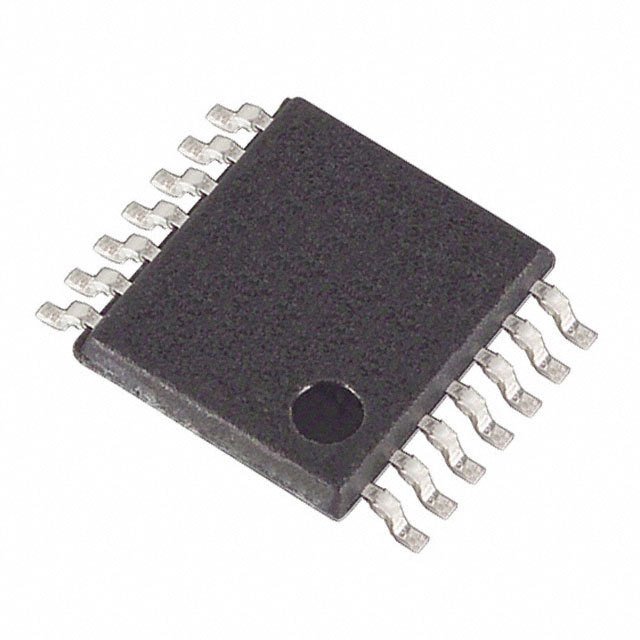

The is a ±15KV ESD protected, 1µA quad channel low voltage level translator in 14 pin TSSOP package. ESD protected level translators provide the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages VCC and VL set the logic levels on either side of the device. A low voltage logic signal present on the VL side of the device appears as a high voltage logic signal on the VCC side of the device and vice-versa.

.

Supply voltage range is 1.65V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Data rate is 8Mbps

.

Unidirectional level translation

.

Four receiver

.

Ultra low 1µA supply current in three state output mode

.

Low quiescent current of 130µA

.

Thermal short-circuit protection
