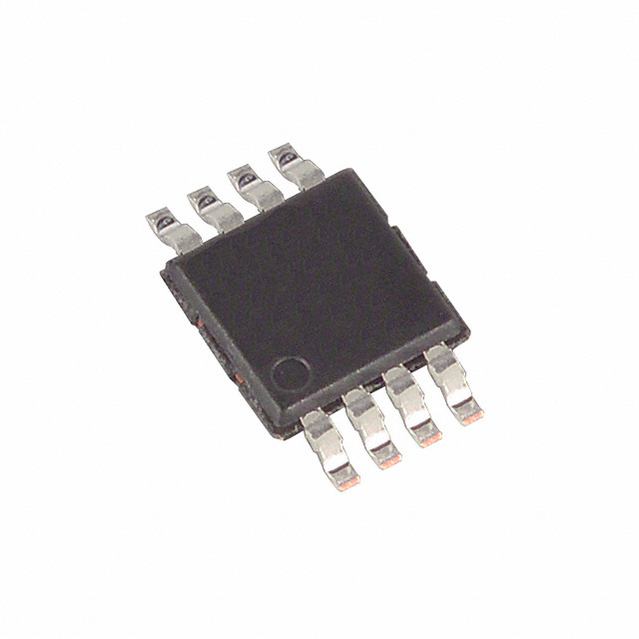

电压参考系列-固定, 2.5V参考, ± 2ppm/°C, µMax-8
The is a high precision, low power, low dropout voltage reference in 8 pin µMax package. This device has low ±2ppm/°C temperature coefficient and a low dropout voltage 200mV, maximum. It features bandgap technology for low noise performance and excellent accuracy. Load regulation specifications are guaranteed for source currents up to 15mA. The laser trimmed, high stability thin film resistors together with post package trimming provide an excellent initial accuracy specification 0.06%, maximum. It consumes only 40µA of supply current virtually independent of supply voltage, save system power and use minimal external components compared to 2 terminal shunt references. The unique blend of tiny packaging and excellent precision performance make this part ideally suited for portable and communication applications. This device is typically used in precision regulators and A/D and D/A converters.
电源电压DC 2.70V min
容差 ±0.06 %
输入电压DC 2.70V ~ 12.6V
输出电压 2.5 V
输出电流 15 mA
供电电流 85 µA
通道数 1
针脚数 8
输入电压Max 13 V
输出电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 12.6V
安装方式 Surface Mount
引脚数 8
封装 uMAX-8
长度 3.05 mm
宽度 3.05 mm
高度 1.1 mm
封装 uMAX-8
工作温度 -40℃ ~ 125℃
温度系数 ±2 ppm/℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, Portable Devices, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6133A25+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6133A25+T 美信 | 完全替代 | MAX6133A25+和MAX6133A25+T的区别 |
