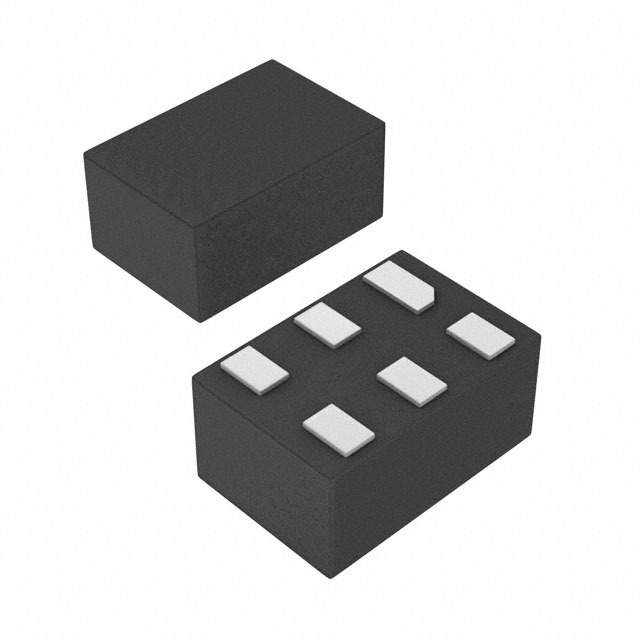

MAXIM INTEGRATED PRODUCTS MAX6897PALT+T 芯片, 微处理器监控器, 5.5V, UDFN-6
The is a ultra small, adjustable sequencing/supervisory circuit in 6 pin UDFN package. This is a low power, voltage-monitoring circuit with sequencing capability. This miniature device offers tremendous flexibility with an adjustable threshold capable of monitoring down to 0.5V and an external capacitor-adjustable time delay. The device is suitable for use in power supply sequencing, reset sequencing and power switching applications. A high impedance input with a 0.5V threshold allows an external resistive divider to set the monitored threshold. The output asserts when the input voltage rises above the 0.5V threshold and the enable input is asserted. When the voltage at the input falls below 0.5V or when the enable input is deasserted, the output deasserts. The device provides a capacitor programmable delay time from when the input rises above 0.5V to when the output is asserted.
电源电压DC 1.50V min
针脚数 6
耗散功率 167.7 mW
阈值电压 500 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.5 V
安装方式 Surface Mount
引脚数 6

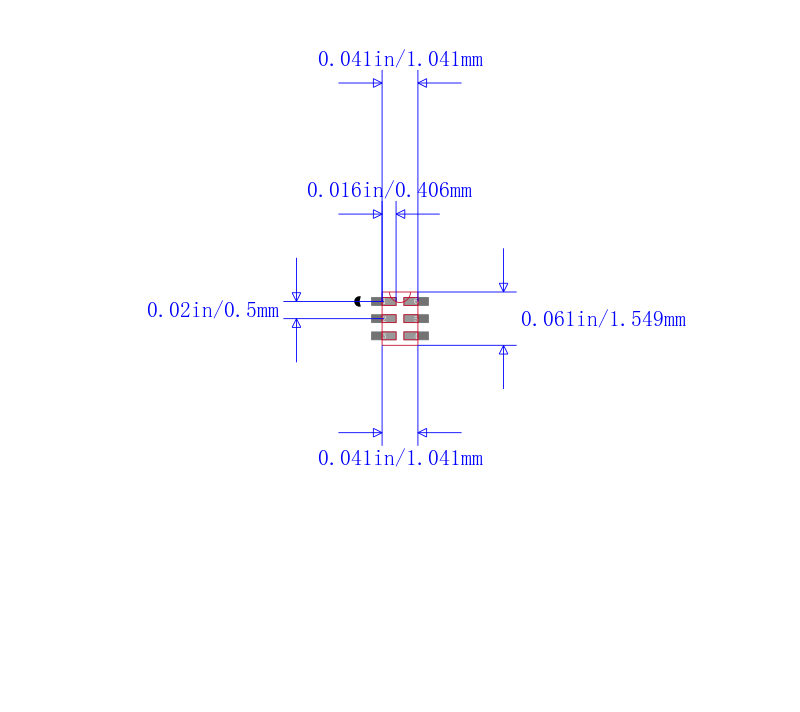

封装 WFDFN-6
长度 1.5 mm
宽度 1 mm
高度 0.75 mm
封装 WFDFN-6
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Automotive, Portable Devices, System Monitoring, 便携式器材, 车用, Communications & Networking, 通信与网络, 系统监控
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6897PALT+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6897PALT+ 美信 | 功能相似 | MAX6897PALT+T和MAX6897PALT+的区别 |
MAX6897PALT-T 美信 | 功能相似 | MAX6897PALT+T和MAX6897PALT-T的区别 |
