MCR03EZPJ100

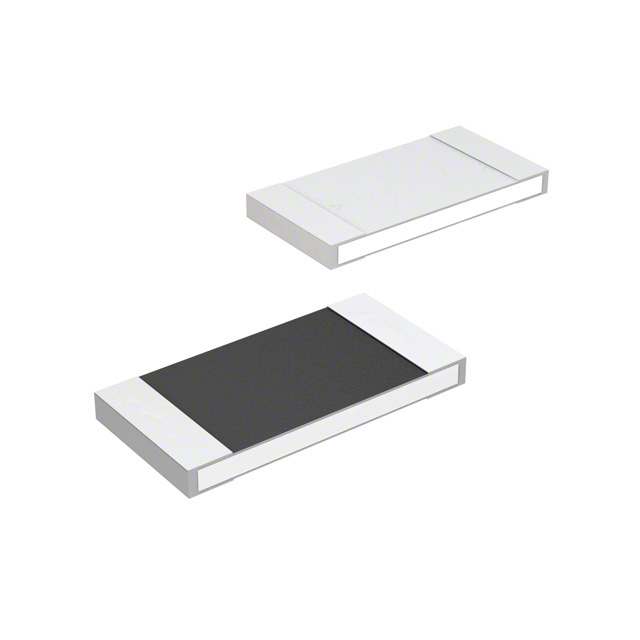

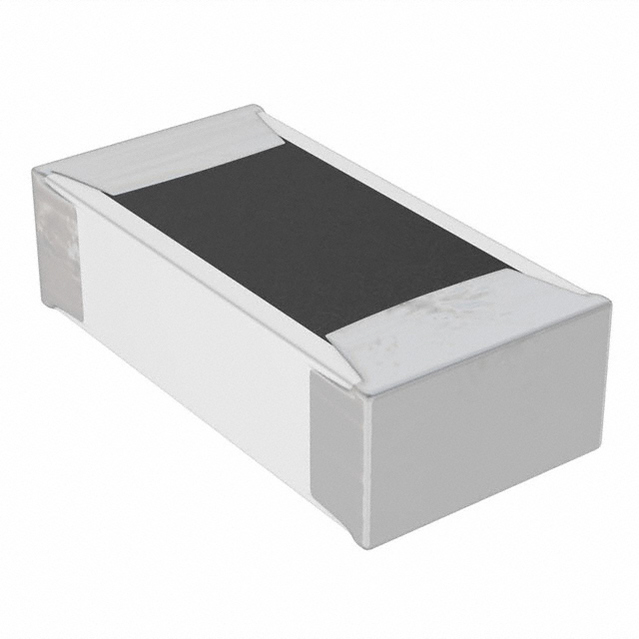

MCR03EZPJ100图片1
MCR03EZPJ100图片2
MCR03EZPJ100图片3
MCR03EZPJ100图片4
MCR03EZPJ100图片5
MCR03EZPJ100图片6
MCR03EZPJ100图片7
MCR03EZPJ100概述

0603 10 Ω 0.1 W ±5% 容差 200 ppm/°C

罗姆 贴片 0603 10Ω ±5%


得捷:
RES SMD 10 OHM 5% 1/10W 0603


艾睿:
Res Thick Film 0603 10 Ohm 5% 0.1W1/10W ±200ppm/°C Epoxy Resin Pad SMD Automotive T/R


安富利:
Chip resistors are highly reliable due to metal-glaze resistive element. They are long-seller in the market for needs from consumer electronics to industrial/automotive. The packages are available from the ultra-compact size best matching mobile communication appliances and portable equipment.


富昌:
表面贴装 厚膜 贴片电阻 0603 10 Ω 0.1 W ±5% 容差 200 ppm/°C


Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 10 Ohm 5% 0.1W1/10W 200ppm/ C Molded SMD Paper T/R


立创商城:
10Ω ±5% 100mW


Verical:
Res Thick Film 0603 10 Ohm 5% 0.1W1/10W ±200ppm/C Molded SMD Automotive Paper T/R


Win Source:
RES SMD 10 OHM 5% 1/10W 0603


MCR03EZPJ100中文资料参数规格
技术参数

额定电压DC 50.0 V

容差 ±5 %

额定功率 0.1 W

产品系列 MCR

电阻 10 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

MCR03EZPJ100引脚图与封装图

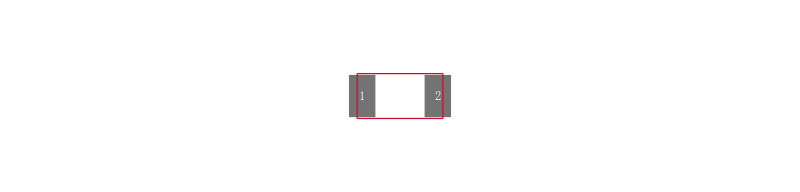

MCR03EZPJ100引脚图
MCR03EZPJ100封装图
MCR03EZPJ100封装焊盘图
在线购买MCR03EZPJ100
型号: MCR03EZPJ100
制造商: ROHM Semiconductor 罗姆半导体
描述:0603 10 Ω 0.1 W ±5% 容差 200 ppm/°C
替代型号MCR03EZPJ100
型号/品牌 代替类型 替代型号对比

MCR03EZPJ100

ROHM Semiconductor 罗姆半导体

当前型号

当前型号

MCR03ERTJ100

罗姆半导体

完全替代

MCR03EZPJ100和MCR03ERTJ100的区别

NRC06J100TRF

NIC

类似代替

MCR03EZPJ100和NRC06J100TRF的区别

RC0603JR-07 10RL

国巨

类似代替

MCR03EZPJ100和RC0603JR-07 10RL的区别
