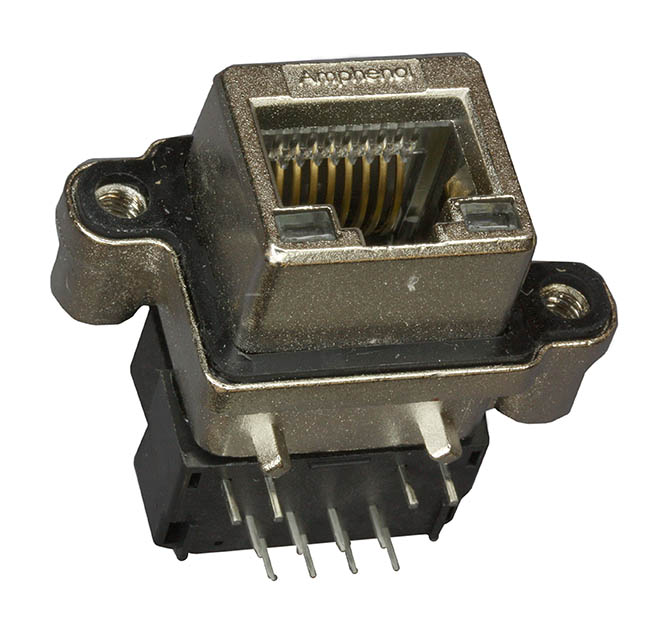

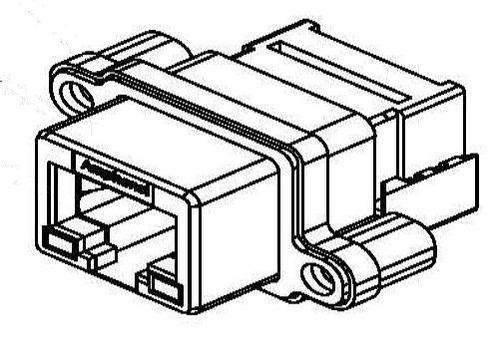

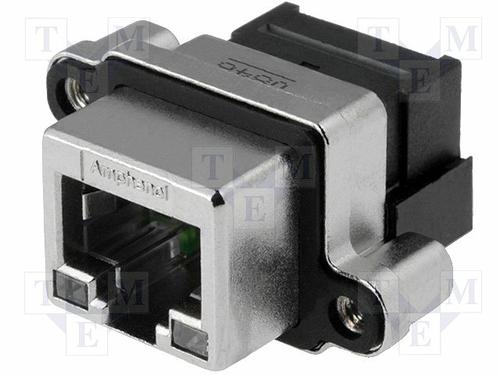

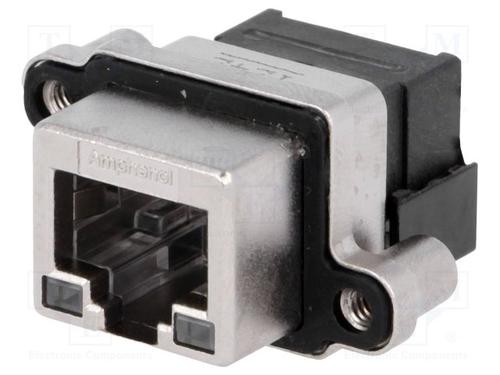

AMPHENOL MRJ-5381-01 模块连接器, Cat5, RJ45, MRJ系列, 插座, 8 触点, 8 路, 1 端口
The MRJ series Rugged RJ45 Connector has phosphor bronze with gold over nickel contacts. It is designed to provide a standard RJ45 interface, ideal for harsh environments where Ethernet/IP protocol is used. It has data rates conform to 10BaseT or 100BaseT Ethernet. It has right angle PCB tail termination with 8 or 10 positions, LED options, EMI ferrite filtering and PCB options with matching RJ connector, cable header and terminal block or for hand wiring. It also has vertical PCB tail termination with 8 positions and LED options. The device both termination styles have dust covers for enhanced mating area protection.
- .
- Protection is provided for IP67 applications per IEC 60529 specification
- .
- 1.5A Current rating per pin
- .
- 30mR Contact resistance maximum
- .
- 2500 Mating cycles
触点数 8
极性 Male
触点电镀 Gold
额定电压DC 100 V
额定电流 1.50 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 No
额定电流Max 1.5 A
工作温度Max 105 ℃
工作温度Min -40 ℃
接触电阻Max 30 mΩ
安装方式 Through Hole
长度 30.3 mm
宽度 26.95 mm
高度 18 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, 计算机和计算机周边, 射频通信, , 国防, Medical, Computers & Computer Peripherals, Communications & Networking, , Consumer Electronics, Communi, 通信与网络, Automation & Process Control, 测试, Computers & Computer Peripherals, 医用, 视频和目视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
