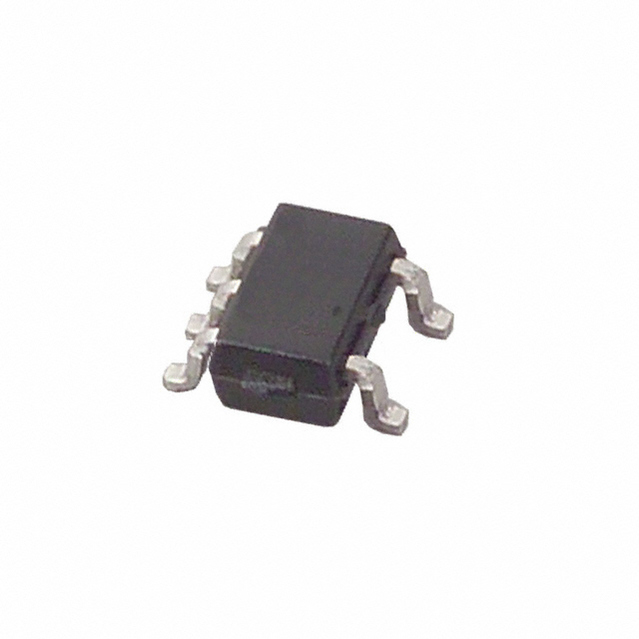

MAXIM INTEGRATED PRODUCTS MAX8510EXK45+T 固定低压差电压稳压器, 2V-6V输入, 120mV压差, 4.5V/120mA输出, SC-70-5
The is an ultra low noise, high PSRR low dropout linear regulator with fixed output in 5 pin SC-70 package. This linear regulator is designed to deliver up to 120mA continuous output current. The MAX8510 uses an advanced architecture to achieve ultra low output voltage noise of 11µVrms at 100Hz to 100KHz and PSRR of 78dB at f = 1KHz. It achieves a low 120mV dropout for 120mA load current. Designed with P-channel MOSFET series pass transistor, the MAX8510 maintains very low ground current of 40µA. The regulator is designed and optimized to work with low value and low cost ceramic capacitors. It requires only 1µF typically of output capacitance for stability with any load. When disabled, current consumption drops to below 1µA.
输出接口数 1
输入电压DC 6.00V max
输出电压 4.5 V
输出电流 120 mA
供电电流 90 µA
针脚数 5
耗散功率 0.247 W
跌落电压 120 mV
输入电压Max 6 V
输入电压Min 2 V
输出电压Min 4.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.247 W
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

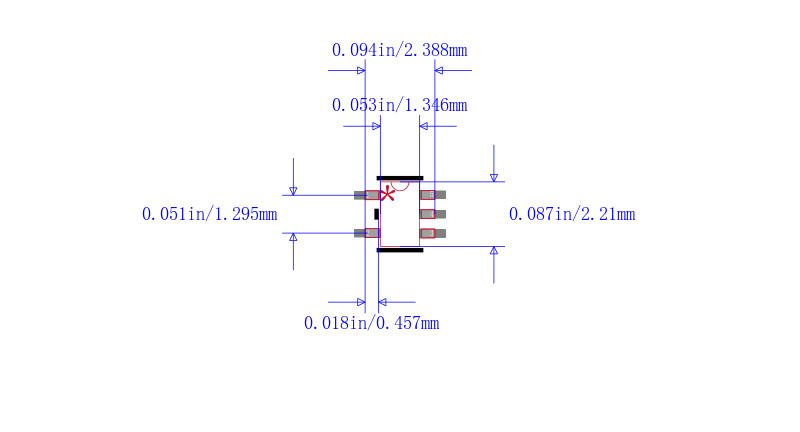

封装 SC-70-5
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Portable Devices, Communications & Networking, Wireless, 无线, 便携式器材, 电源管理, 通信与网络, Power Management, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX8510EXK45+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX8510EXK45-T 美信 | 类似代替 | MAX8510EXK45+T和MAX8510EXK45-T的区别 |
TPS71745QDCKRQ1 德州仪器 | 功能相似 | MAX8510EXK45+T和TPS71745QDCKRQ1的区别 |
