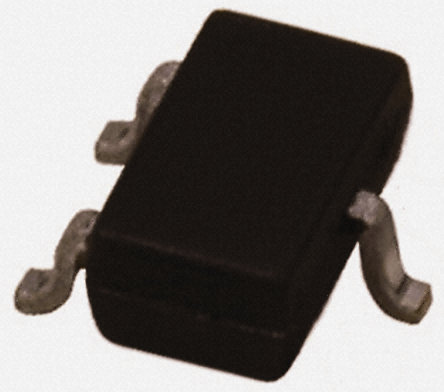

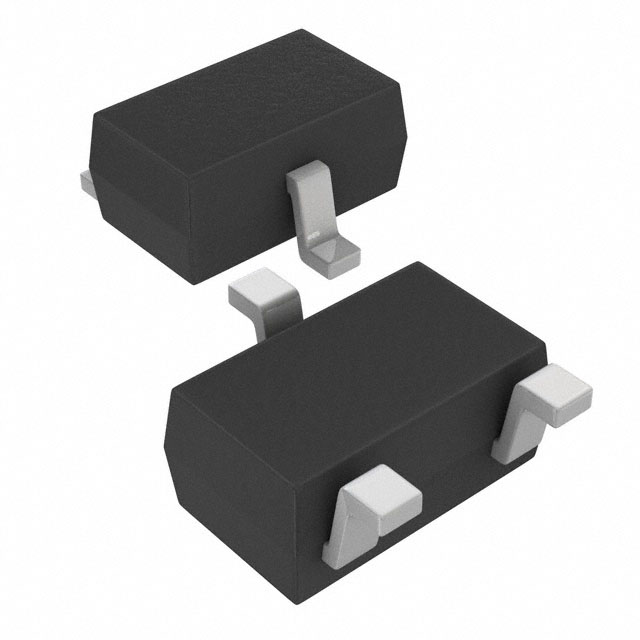

MICROCHIP MCP111T-240E/LB 监控器, 低电平有效, 漏极开路复位, 1V-5.5V输入, SC-70-3
MCP111 电压监控器
得捷:
IC SUPERVISOR 1 CHANNEL SC70-3
立创商城:
MCP111T-240E/LB
欧时:
Microchip MCP111T-240E/LB 电压监控器, 2.262 至 2.378 V监控电压, 低电平有效, 3引脚 SC-70封装
e络盟:
监控器, 低电平有效, 漏极开路复位, 1V-5.5V输入, SC-70-3
艾睿:
This voltage detector MCP111T-240E/LB voltage monitor IC from Microchip Technology makes protecting your circuit from unwanted voltage spikes easy. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a typical reset threshold voltage of 2.32 V, with a minimum of 2.285 V and a maximum of 2.355 V.
Allied Electronics:
Microchip MCP111T-240E/LB, Voltage Supervisor 2.262 to 2.378 V, 3-Pin SC-70
安富利:
Volt Supervisor Detect 2.32V 3-Pin SC-70 T/R
Chip1Stop:
Volt Supervisor Detect 2.32V Automotive 3-Pin SC-70 T/R
Verical:
Processor Supervisor 2.32V 1 Active Low/Open Drain Automotive 3-Pin SC-70 T/R
Newark:
# MICROCHIP MCP111T-240E/LB IC, SUPERVISOR, 2.32V, LOW, SC70-3
儒卓力:
**DETECTOR 2,32V 1,75µA SC70 **
DeviceMart:
IC VOLT DET 2.32V LOW SC70-3
电源电压DC 1.00V min
供电电流 1.75 µA
针脚数 3
静态电流 1.00 µA
阈值电压 2.32 V
复位电压Min 2.285 V
复位电压Max 2.355 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5.5 V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
长度 2.25 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, Sensing & Instrumentation, 计算机和计算机周边, 便携式器材, Portable Devices, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
