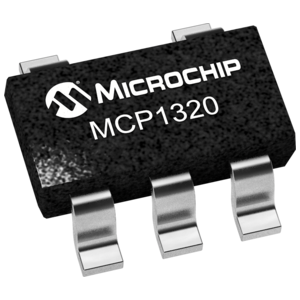

MICROCHIP MCP1320T-29LE/OT 监控器电路, 低电平有效复位, 1V-5.5V输入, SOT-23-5
MCP1320 微控制器监控和重置电路
欧时:
Microchip MCP1320T-29LE/OT 电压监控器, 多种输出驱动, 复位功能, 5引脚 SOT-23封装
立创商城:
MCP1320T-29LE/OT
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-5
e络盟:
监控器电路, 低电平有效复位, 1V-5.5V输入, SOT-23-5
艾睿:
Do your circuit&s;s needs demand a great deal from your processor? The MCP1320T-29LE/OT microprocessor supervisory circuit from Microchip Technology is the perfect backup solution. This device has a maximum power dissipation of 240 mW. Its maximum power dissipation is 240 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.9 V, with a minimum of 2.857 V and a maximum of 2.944 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
Supervisor; Active Low P-P with WDI, MR- WDI = 1.6S, Reset Delay = 200ms
富昌:
ACTIVE LOW OPEN-DRAIN, WDI, MR WDI = 1.6S, RESET DELAY = 200MS, VTRPD - 2.9V
Chip1Stop:
Processor Supervisor 2.9V 2V to 4.7V Automotive 5-Pin SOT-23 T/R
TME:
Supervisor Integrated Circuit; power on reset monitor PoR
Verical:
Processor Supervisor 2.9V 1 Active Low/Open Drain Automotive 5-Pin SOT-23 T/R
Newark:
# MICROCHIP MCP1320T-29LE/OT SUPERVISORY CIRCUIT, SMD, SOT-23-5
儒卓力:
**SUPERVISOR 2,9V LOW SOT23-5L **
Online Components:
Processor Supervisor 2.9V 2V to 4.7V 1 Active Low/Open Drain Automotive 5-Pin SOT-23 T/R
DeviceMart:
IC SUPERVISOR 2.90V O-D SOT23-5
电源电压DC 1.00V min
工作电压 1V ~ 5.5V
输出接口数 1
输出电压 ≤300 mV
输出电流 10 mA
供电电流 10 μA
针脚数 5
耗散功率 240 mW
静态电流 1 µA
阈值电压 2.9 V
复位电压Min 2.857 V
复位电压Max 2.944 V
下降时间 5 μs
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 240 mW
电源电压 2.9 V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1320T-29LE/OT Microchip 微芯 | 当前型号 | 当前型号 |
MCP1320T-46LE/OT 微芯 | 完全替代 | MCP1320T-29LE/OT和MCP1320T-46LE/OT的区别 |
STM6822SWY6F 意法半导体 | 功能相似 | MCP1320T-29LE/OT和STM6822SWY6F的区别 |
