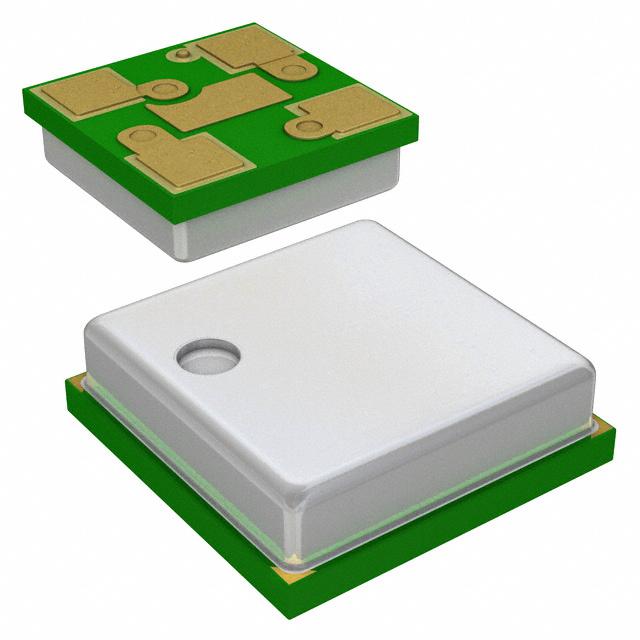

MS563702BA03-50

MEASUREMENT SPECIALTIES  MS563702BA03-50  压力传感器, 气压, 300 mbar, 1200 mbar, 1.8 V, 3.6 V

The is an ultra-compact Micro Altimeter, optimized for altimeter and barometer applications in smartphones and tablet PCs. The altitude resolution at sea level is 13cm of air. The sensor module includes a high-linearity pressure sensor and an ultra-low power 24-bit ΔΣ ADC with internal factory-calibrated coefficients. It provides a precise digital 24-bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. It can be interfaced to any microcontroller with I²C-bus interface. The communication protocol is simple, without the need of programming internal registers in the device. Small dimensions of 3 x 3 x 0.9mm³ allow the integration in mobile devices.

.

High Resolution Module, 13cm

.

Integrated Digital Pressure Sensor 24-bit ΔΣ ADC

.

I²C Interface

.

10 to 2000mbar Extended Pressure Range

.

Fast Conversion Down to 0.5ms

.

Low-power, 0.6µA Standby

.

No External Components Internal Oscillator

Electrical contact pads are protected against ESD up to 4kV HBM human body model, essential to ground machines and personnel properly during assembly and handling of the device.
