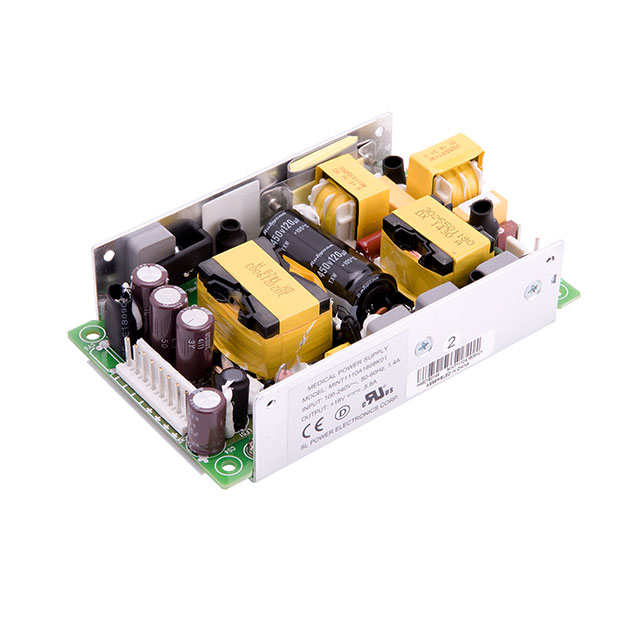

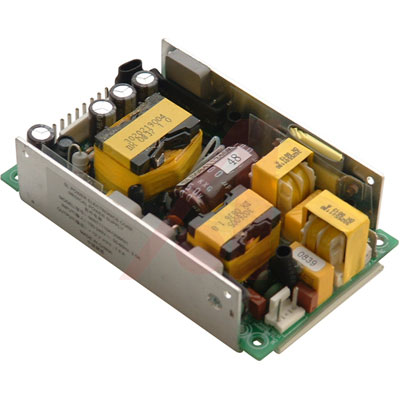

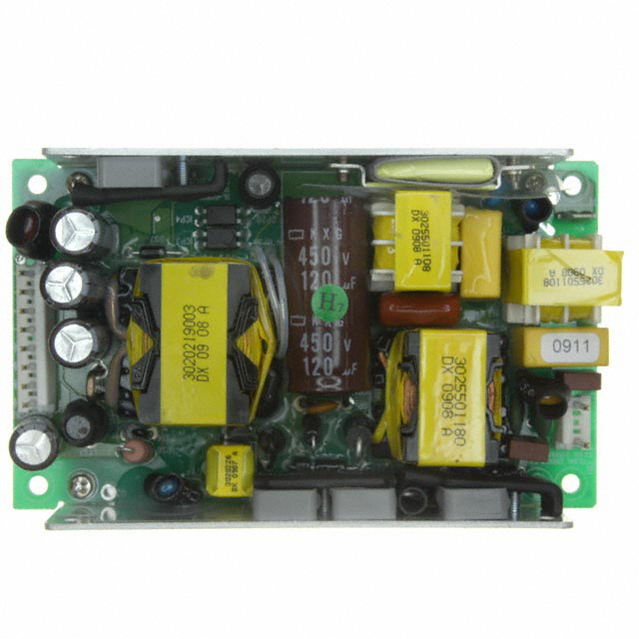

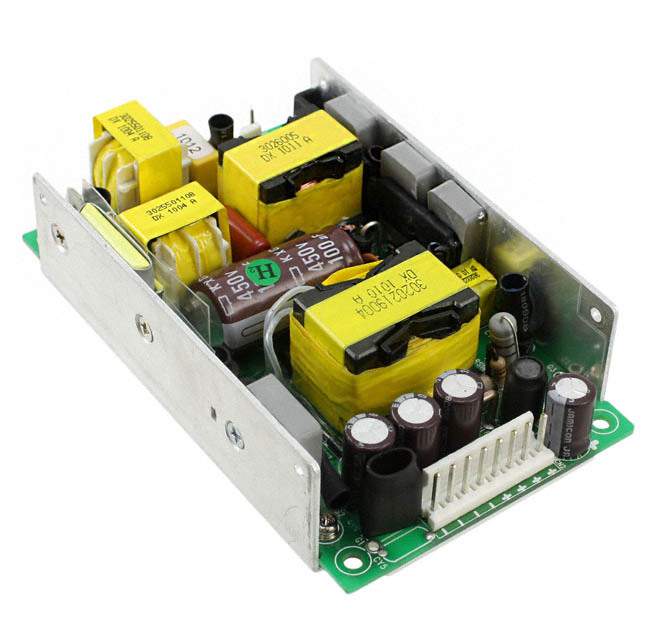

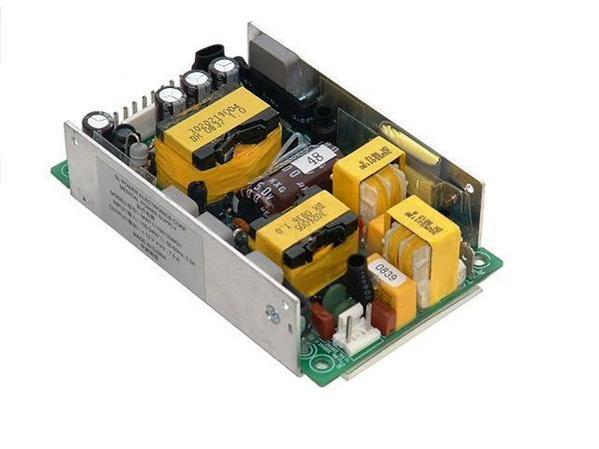

SL POWER CONDOR 110W 1输出 嵌入式开关模式电源（SMPS）, 18V, 5.8A
The MINT1110A series is a key addition Condor’s MINT Series of universal input power supplies. It is specifically designed for medical systems applications. The 110 W MINT1110 is a high-performance supply at a popular power level. The single output MINT1110 series units are of a compact, open-frame design measuring only 3-inch x 5-inch × 1.27-inch and offering a typical full-load EFFICIENCY of up to 87 percent. They are available in four outputs ranging from 12 to 24 V. The units feature a universal 100-240 VAC input that provides flexibility for use anywhere in the world. They are protected against over-voltage, over-current and short-circuit with optional over-temperature protection.
The supply is intended for a wide range of medical applications, from diagnostic and respiratory care equipment to continuous positive airway pressure CPAP devices and monitors of all types.
The MINT1110 units carry a wide set of medical and safety approvals including EN/IEC/UL 60601-1 and CSA 22.2 No. 601.1-M90. In addition, the MINT1110 family is RoHS-compliant.
**Features**
* 110 Watt Convection Cooled AC-DC Power Supply
* Universal Input: 90 - 264 VAC
* Less than 1.27" Height
* Rugged EMC Compliant Design
* 3" × 5"" Package
* Approved to EN/IEC/UL60601-1 for Medical
* CE Compliant
* 2 Year Warranty
