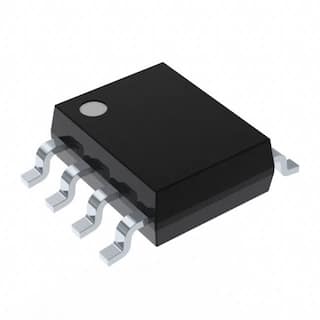

MAXIM INTEGRATED PRODUCTS MAX3469CSA+ 芯片, RS422/RS485 收发器, 30MBPS, 5.25V, NSOIC-8
The is a +5V, fail-safe, profibus RS485/RS422 transceiver in 8 pin NSOIC package. This high speed and half duplex differential bus transceiver is designed to meet TIA/EIA-422-B, TIA/EIA-485-A, V.11 and X.27 standards. It complies with profibus specification providing +2.1V minimum output level with 54ohm load and 40Mbps data rate. The MAX3469 contains one three state differential line driver and one differential input line receiver. The device operates from +5V supply and feature true fail-safe circuitry which provides logic high receiver output when receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logic highs when all transmitters are disabled. It has 1/4 standard unit load receiver input impedance that allows 128 transceivers on the bus. The driver and receiver has active-high and active-low enables respectively and can be connected together externally to serve as a direction control. It is used in level translators.
电源电压DC 5.25V max
输出电压 3 V
供电电流 2.5 mA
针脚数 8
耗散功率 471 mW
数据速率 40.0 Mbps
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 471 mW
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
输入电压 0.8V ~ 2V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
制造应用 工业, Communications & Networking, Industrial, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX3469CSA+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX3469CSA 美信 | 完全替代 | MAX3469CSA+和MAX3469CSA的区别 |
MAX3469CSA+T 美信 | 完全替代 | MAX3469CSA+和MAX3469CSA+T的区别 |
MAX3469ESA+ 美信 | 类似代替 | MAX3469CSA+和MAX3469ESA+的区别 |
