MAX7310ATE+

MAXIM INTEGRATED PRODUCTS  MAX7310ATE+  输入/输出扩展, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, TQFN

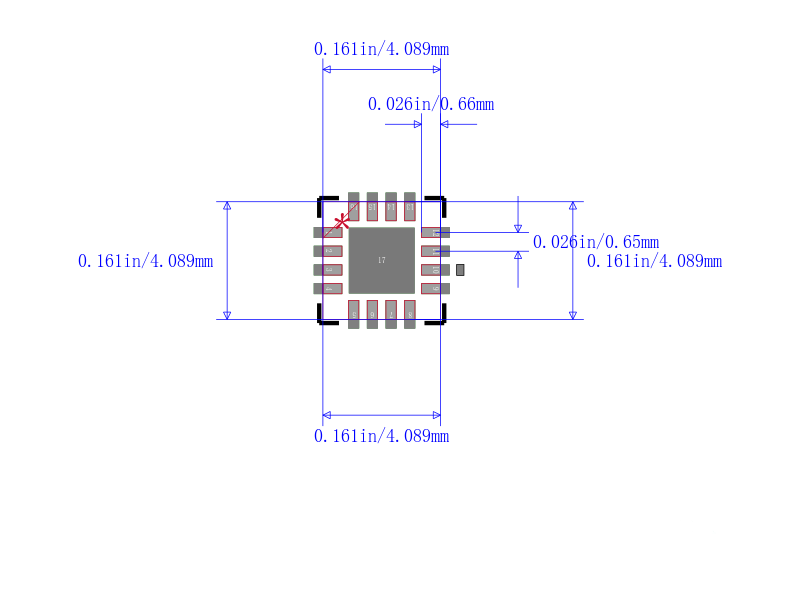

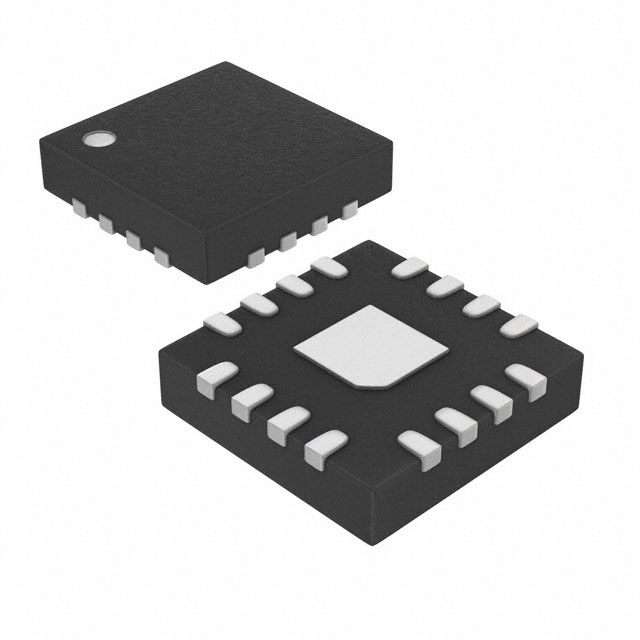

The is a 2-wire-interfaced 8bit I/O port expander with reset in 16 pin TQFN package. It provides 8bit parallel input/output port expansion for SMBus -compatible and I2C-compatible applications. It consists of an input port register, an output port register, a polarity inversion register, a configuration register, a bus timeout register and an SMBus/I2C-compatible serial interface. The system master can invert MAX7310 input data by writing to active-high polarity inversion register. The system master can enable or disable bus timeout by writing to bus timeout register. Any of eight I/O ports may be configured as input or output. An active-low reset input sets eight I/Os as inputs. Three address select pins configure one of 56 slave ID addresses. It is used in servers, RAID systems, test & measurement.

.

Supply voltage range is 2.3V to 5.5V

.

Operating temperature range from -40°C to 125°C

.

Low standby current of 1.7µA typ at V+ = 3.3V

.

400KHz 2-wire interface

.

Bus timeout for lock-up-free operation

.

Polarity inversion

.

Eight I/O pins that default to inputs on power-up

.

5V tolerant open-drain output on I/O0

.

Power-on reset voltage is 1.6V
