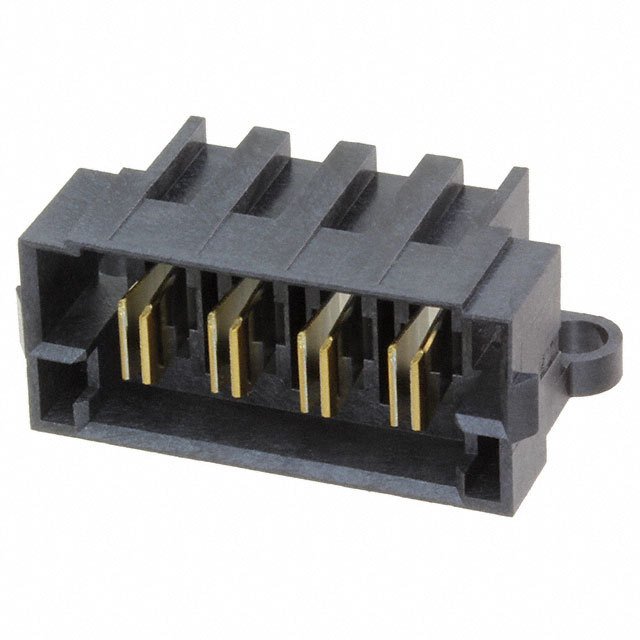

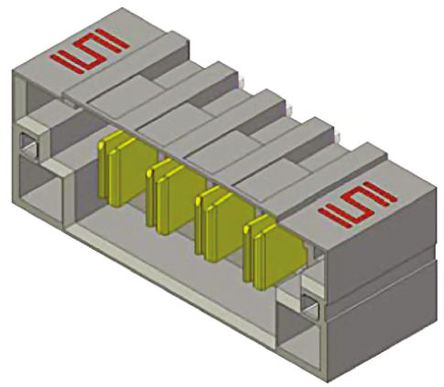

MPT-04-01-01-L-RA-SD

Samtec MPT 系列 5mm节距 4路 1排 直角 PCB 管座, 焊接端接, 34.8A

MPT Series 25A Dual Blade Header

This Board to Board range of MPT Series 25 A, Dual Blade, Headers from have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB Tails. The stack height of the Board-to-Board MPT Series 25 A, Dual Blade, Headers is 14 mm when mated with the corresponding MPS Series Socket, see stock number 767-6932 typical. These Board to Board MPT Series 25 A, Dual Blade, Through Hole Headers are used with a 1.6 mm thick PCB. The design of the Right Angle RA versions of these Board-to-Board MPT Series 25 A, Dual Blade, Headers have Ø3.56 mm Screw Down holes.

Insulator Material: Black LCP

Temperature Range: -55 → 125 °C

.

*6.30**-01-L-**V**: Height 6.3 mm, Vertical

.

*RA-SD:** Right Angle with Screw Down holes
