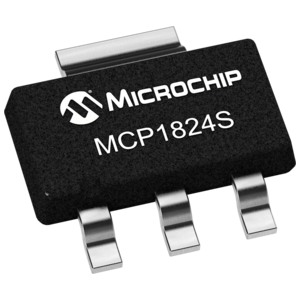

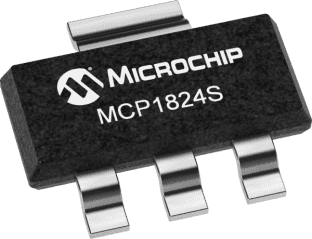

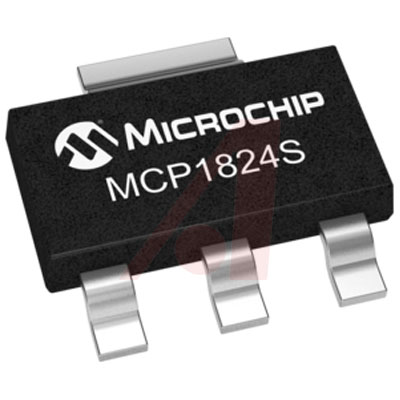

MCP1824 低压降电压稳压器### LDO(低压降)线性稳压器,Microchip
MCP1824 低压降电压稳压器
得捷:
IC REG LIN 1.2V 300MA SOT223-3
立创商城:
正 Vin=6V Vout=1.2V~1.2V 300mA 55dB@100Hz
欧时:
Microchip MCP1824ST-1202E/DB LDO 稳压器, 1.2 V输出, 300mA最大输出, ±2.5%精确度, 2.1 → 6 V输入
艾睿:
This LDO MCP1824ST-1202E/DB linear regulator from Microchip Technology is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. Use this part at voltages between 2.1 V and 6 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Users like the load regulation of 0.5%Typ and line regulation of 0.05%/VTyp. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.32@300mA V.
Allied Electronics:
300 mA CMOS LDO, Vout=1.2V, Extended Temp Range
Chip1Stop:
LDO Regulator Pos 1.2V 0.3A Automotive 4-Pin3+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 1.2V 0.3A Automotive 4-Pin3+Tab SOT-223 T/R
Newark:
# MICROCHIP MCP1824ST-1202E/DB Fixed LDO Voltage Regulator, 2.1V to 6V, 200mV Dropout, 1.2Vout, 300mAout, SOT-223-3
儒卓力:
**LDO.VREG POS 1,2V 0,3A SOT223 **
DeviceMart:
IC REG LDO 1.2V .3A SOT223-3
输出接口数 1
输出电压 1.2 V
输出电流 300 mA
供电电流 220 μA
静态电流 0.12 mA
输出电容类型 Ceramic
跌落电压 200 mV
热阻 15℃/W RθJC
输入电压Max 6 V
输入电压Min 2.1 V
输出电压Min 1.2 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 6 V
安装方式 Surface Mount
引脚数 3

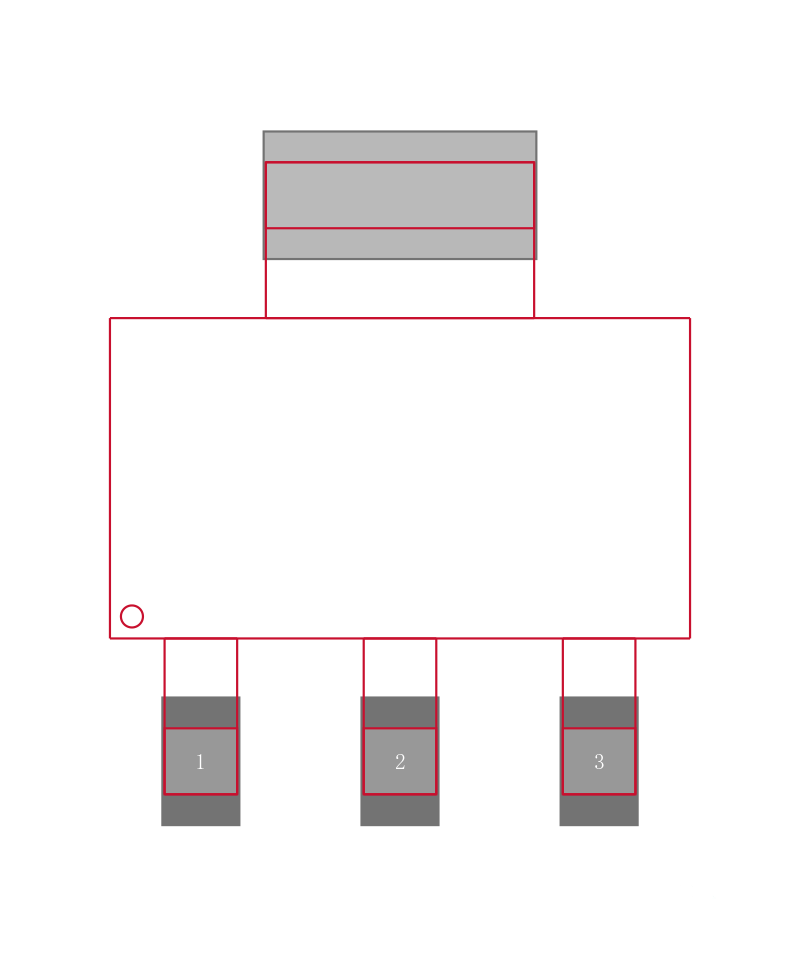

封装 SOT-223-3

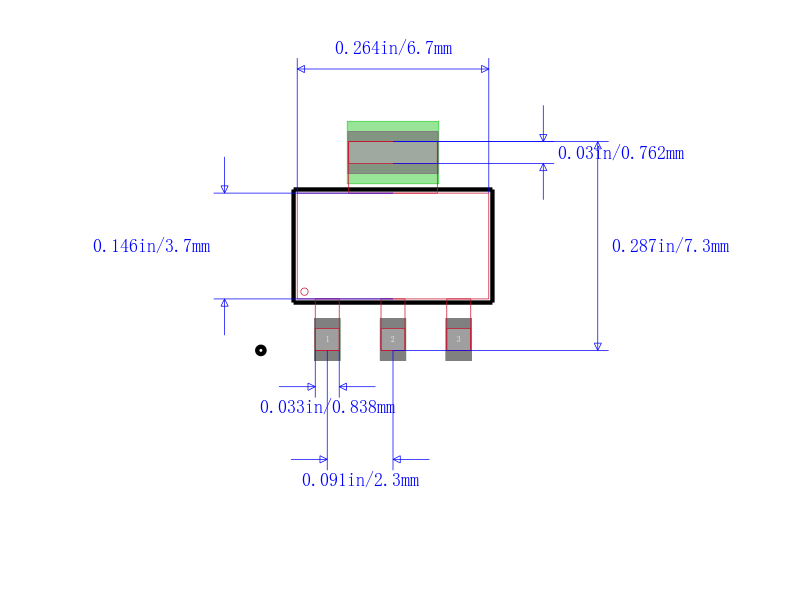

长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Industrial, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
