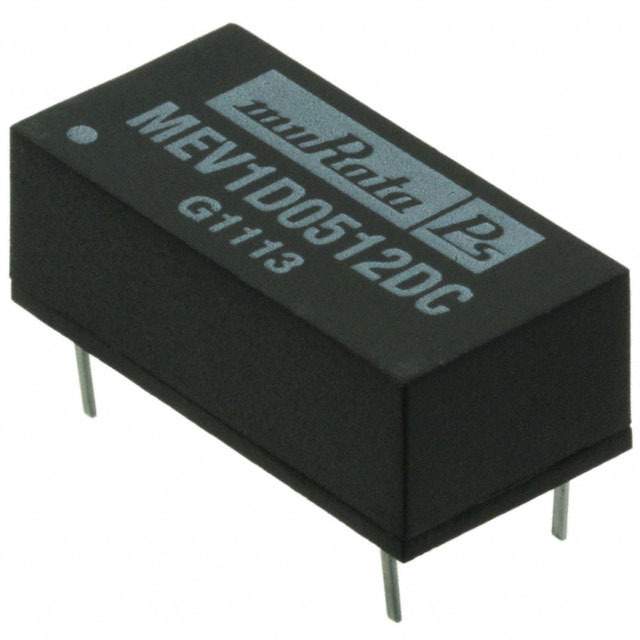

Module DC-DC 5Vin 2Out 12V/-12V 0.042A/-0.042A 1W 6Pin DIP Tube
Provide the ability to switch between voltages by using this non-inverting|inverting|step up|step down DC to DC converter and switching regulator module. It has a voltage of 12|-12 V. This part has a temperature range of -40 °C to 85 °C. This device comes in tube packaging.
得捷:
DC DC CONVERTER +/-12V 1W
艾睿:
Module DC-DC 5VIN 2-OUT 12V/-12V 0.042A/-0.042A 1W 6-Pin DIP Tube
安富利:
Module DC-DC 2-OUT 12V/-12V 0.042A/-0.042A 1W 6-Pin DIP Tube
Verical:
Module DC-DC 5VIN 2-OUT 12V/-12V 0.042A/-0.042A 1W 6-Pin DIP Tube
Newark:
# MURATA POWER SOLUTIONS MEV1D0512DC Isolated Board Mount DC/DC Converter, 3kV Isolation, Fixed, 2 Output, 4.5 V, 5.5 V, 1 W, 12 V
电源电压DC 5.00 V
额定功率 1 W
输出接口数 2
输入电压DC 4.50V ~ 5.50V
输出电压 ±12 V
输出电流 42 mA
输出功率 1 W
隔离电压 3 kV
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 42mA, 42mA
输出功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5 V
输入电压 5 V
安装方式 Through Hole
引脚数 6
封装 DIP-14
宽度 10 mm
高度 7 mm
封装 DIP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
