金属氧化物变阻器白色家电/家用电器电信系统 Metal Oxide Varistor White goods / appliances Telecom systems

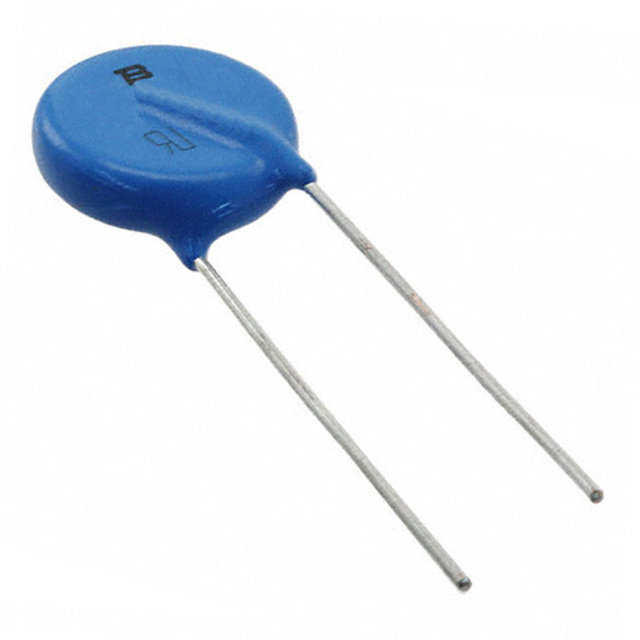

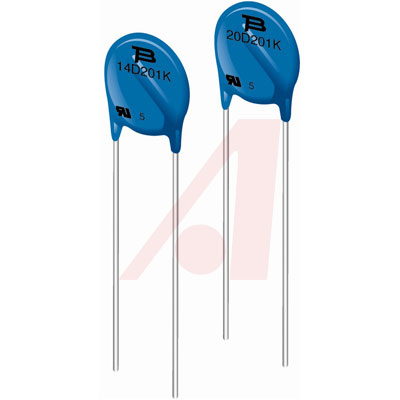

The MOV-14DxxxK Series of 14 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 1800 V and Vrms voltages from 11 V to 1100 V.
The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits.
**Features:**
* High Voltage Rating
* High Current Rating
* Bidirectional
* Surge Protection
* Fast Response Time
* RoHS Compliant
**Applications:**
* Power Supplies
* Power Systems
* Line Voltage
* Telecom Systems
* White Goods/Appliances
额定电压DC 26 V
额定电压AC 20 V
电容 6100 pF
容差 10 %
额定功率 0.6 W
电路数 1
钳位电压 65 V
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 26 V
额定电压AC Max 20 V
安装方式 Through Hole
封装 Disc 14mm
宽度 3.8 mm
高度 20 mm
封装 Disc 14mm
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOV-14D330K Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MOV-14D330KTR 伯恩斯 | 类似代替 | MOV-14D330K和MOV-14D330KTR的区别 |
