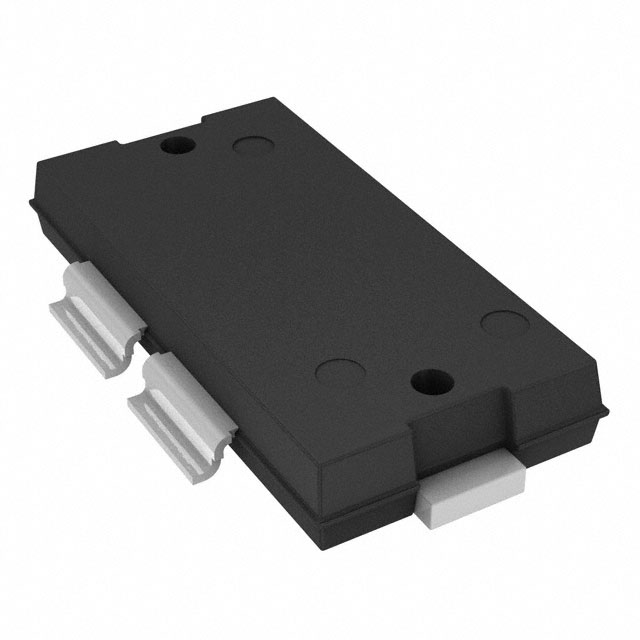

MWE6IC9100GNR1

RF Amp Module Single Power Amp 960MHz 32V 15Pin TO-270W GULL T/R

* Capable of Handling 10:1 VSWR, @ 32 Vdc, 960 MHz, 3 dB Overdrive, Designed for Enhanced Ruggedness * Stable into a 5:1 VSWR. All Spurs Below –60 dBc @ 1 mW to 120 W CW Pout. * Characterized with Series Equivalent Large–Signal Impedance Parametersand Common Source Scattering Parameters * On-Chip Matching 50 Ohm Input, DC Blocked * Integrated Quiescent Current Temperature Compensation with Enable/Disable Function * Integrated ESD Protection * 225°C Capable Plastic Package * RoHS Compliant * In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
