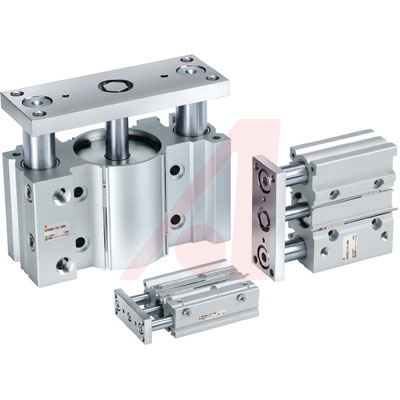

Cylinder; Compact; Guide; Slide Bearing; 80mm Bore; 25mm Stroke; 3/8 NPT Ports
The MGPM-Z is designed for high side load applications found in material handling, lifting and stopping. The cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body. As the stroke length increases, so does the bearing length, thus enhancing the cylinder"s load bearing capacity.
The MGPM-Z is the latest generation of guided cylinders and offers high load capability, longer strokes, 2 port locations, switch mounting grooves on two sides and more versatile T-slot mounting.
**Features:**
* Operating Pressure: 17.4-145 psi 16 mm Bore, 14.5-145 psi 20 to 40 mm Bore
* Piston Speed: 50 to 500 mm/Sec
* Stroke Length Tolerance: +1.5 mm
* Four Mounting Styles Provided
* Piping Is Possible from Two Directions
* Auto Switches Can Be Mounted on Two Sides
* High Mounting and Piping Flexibility
* Optional Air Cushion for Softer Stops
* Optional Stroke End Lock
* Optional Heavy-Duty Guide Rods for Extra Side Load Capacity
* Weight Reduced by Up to 17% with a Shorter Guide Rod and Thinner Plate
