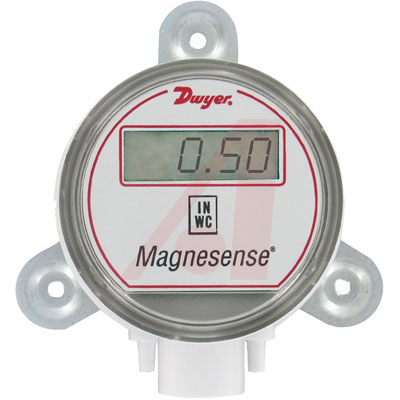

Ms-321-Lcd + Lr 0-10V Wall Mt
The Series MS Magnesense® Differential Pressure Transmitter is an extremely versatile transmitter for monitoring pressure and air velocity. This compact package is loaded with features such as: field selectable English or metric ranges, field upgradeable LCD display, adjustable dampening of output signal with optional display and the ability to select a square root output for use with Pitot tubes and other similar flow sensors. Along with these features, the magnetic sensing technology provides exceptional long term performance and enables the Magnesense® transmitter to be the solution for a myriad of pressure and flow applications.
安装方式 Surface Mount
Body Style Surface
Brand/Series MS Series
IP Rating IP65
Mounting Type Surface Mount
Output 0-10 V
Primary Type Pressure Sensor
Range, Measurement 0.1, 0.25, 0.5 In. WC
Sensing Mode Differential
Supply Voltage 10-35 VDC 2-wire; 17-36 VDC or isolated 21.6-33 VAC 3-wire.
Termination Terminal Block
Type Differential
