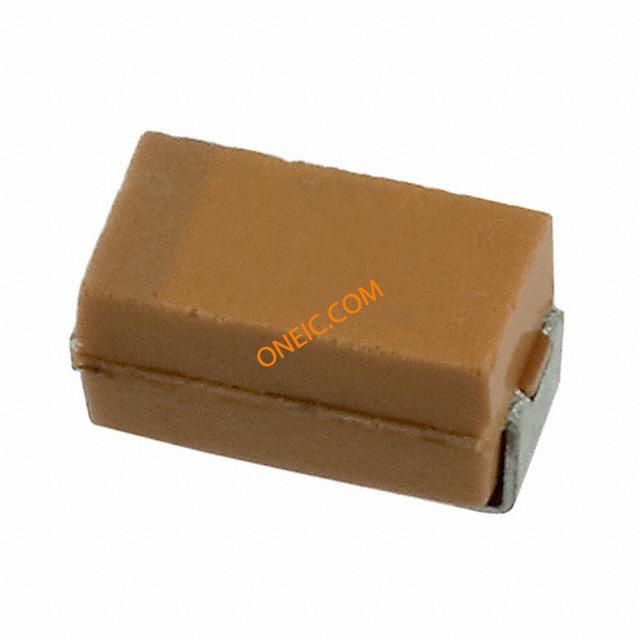

AVX NOJA475M010RWJ 电容, 封装类型A, 4.7uF, 10V
This niobium electrolytic capacitor made from has stable capacitance and leakage currents making for great performance, especially for coupling circuits. It can withstand a voltage of 10 VDC. This niobium oxide capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%. Its capacitance value is 4.7uF.
额定电压DC 10 V
电容 4.7 µF
等效串联电阻ESR 3.1 Ω
容差 ±20 %
纹波电流 0.170 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
