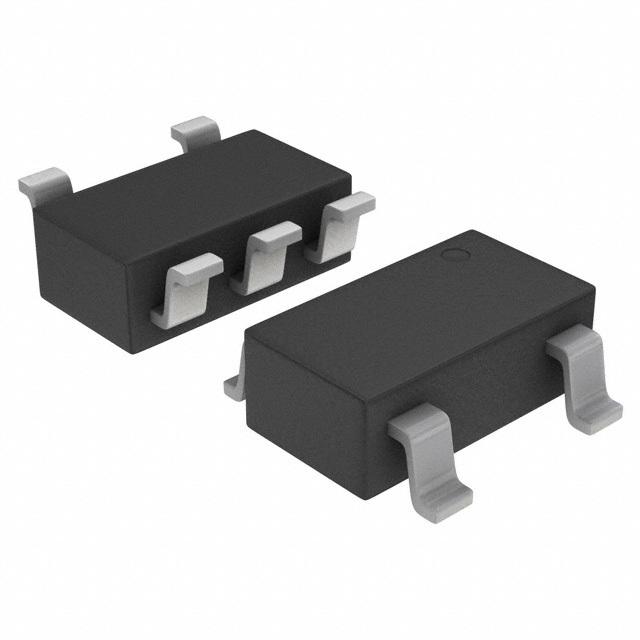

二次侧开关模式PSU控制器, 2.5 V至36 V电源, TSOP-5
Do you need a power regulation device for an application that requires a low voltage DC power supply? Then this constant voltage/ constant current secondary side secondary side PWM controller from is the one for you! In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 2.5 V and a maximum of 36 V. This secondary side synchronous controller"s maximum duty cycle is 15 %. This secondary side synchronous controller has an operating temperature range of -40 °C to 150 °C.
无卤素状态 Halogen Free
输出接口数 1
针脚数 5
开关频率 1 kHz
最大占空比 15 %
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压Max 36 V
电源电压Min 2.5 V
输入电压 2.5V ~ 36V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 次级控制器,准谐振切换模式电源, CC CV Charging, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NCP4328ASNT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
TPS54680MPWPREP 德州仪器 | 功能相似 | NCP4328ASNT1G和TPS54680MPWPREP的区别 |
