低功耗,精确单电源运算放大器
General Purpose Amplifier 1 Circuit 8-SOIC
得捷:
IC OPAMP GP 1 CIRCUIT 8SOIC
艾睿:
Increase functionality to your control circuit with this general purpose amplifier OPA234UA/2K5 OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.35 V and maximum of ±18 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device uses one or two power supplies. It has a single channel per chip. This device is made with bipolar technology.
Verical:
OP Amp Single GP ±18V/36V 8-Pin SOIC T/R
力源芯城:
低功耗,精确单电源运算放大器
Win Source:
IC OPAMP GP 350KHZ 8SOIC
供电电流 275 µA
电路数 1
通道数 1
共模抑制比 86 dB
输入补偿漂移 500 nV/K
带宽 350 kHz
转换速率 200 mV/μs
增益频宽积 350 kHz
输入补偿电压 70 µV
输入偏置电流 12 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 350 kHz
共模抑制比Min 86 dB
电源电压Max 36 V
电源电压Min 2.7 V
安装方式 Surface Mount

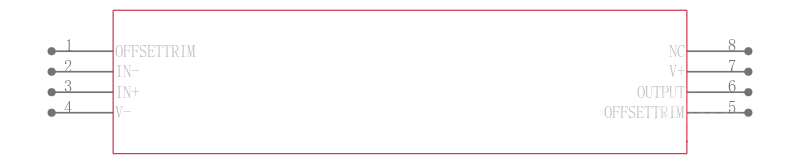

引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA234UA/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
OPA234UAG4 德州仪器 | 完全替代 | OPA234UA/2K5和OPA234UAG4的区别 |
OPA234PA 德州仪器 | 完全替代 | OPA234UA/2K5和OPA234PA的区别 |
OPA234UA 德州仪器 | 类似代替 | OPA234UA/2K5和OPA234UA的区别 |
