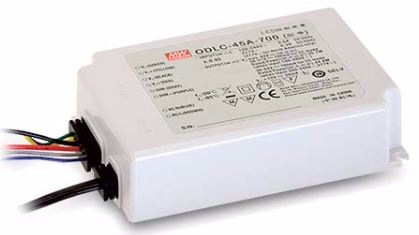

LED电源 45W 500mA 54-90V CC Dimming
500mA 54 ~ 90V Constant Current LED Driver AC DC Converter Topology 1 Output
得捷:
LED DRVR CC AC/DC 54-90V 500MA
贸泽:
LED电源 45W 500mA 54-90V CC Dimming
艾睿:
AC/DC LED Power Supply 45W Single 6-Pin
安富利:
LED DRVR Module 1-CH PWM IP67 90V 0.5A
TME:
Pwr sup.unit: switched-mode; LED; 45W; 54÷90VDC; 500mA; 90÷295VAC
MASTER:
AC/DC LED Power Supply - Const Curr - 45W - Fixed: 115 Vdc OC @ 500mA - Dim: 0-10 Vdc/PWM
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 45W - Fixed: 115 Vdc OC @ 500mA - Dim: 0-10 Vdc/PWM
CDI:
LED Driver CC 45W 500mA Linear 54-90 90-295Vac PFC PWM, 0-10V Dimming Plastic Enclosure
额定功率 45 W
输出接口数 1
输出电压 54.0VDC ~ 90.0VDC
输出电流 0.5 A
通道数 1
输出功率 45 W
隔离电压 3.75 kV
输入电压Max 295 VAC
输入电压Min 90 VAC
输入电压DC Max 417 V
输入电压DC Min 127 v
输入电压AC Max 295 v
输入电压AC Min 90 v
输出电压Max 90 V
输出电压Min 54 V
输出电流Max 500 mA
输出功率Max 45 W
工作温度Max 85 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 295VAC, 127VDC ~ 417VDC
引脚数 6
高度 28.5 mm
工作温度 -20℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 无铅
