PIC 25MHz 闪存：24K@x16bit RAM：3.8KB
PIC series IC 8 位 25MHz 48KB（24K x 16） 闪存 28-SPDIP
得捷:
IC MCU 8BIT 48KB FLASH 28SPDIP
立创商城:
PIC 25MHz 闪存：24K@x16bit RAM：3.8KB
艾睿:
This PIC18F2525-E/SP microcontroller from Microchip Technology will make your CPU more versatile and quick. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a maximum clock speed of 40 MHz. Its flash program memory is 48KB. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.2 V, while its maximum is 5.5 V. This is a 8 bit processor. This device is based on the PIC core architecture. Its ADC resolution is 10.
Allied Electronics:
48 KB Flash, 3968 RAM, 25 I/O
安富利:
MCU 8-bit PIC18 PIC RISC 48KB Flash 5V 28-Pin SPDIP Tube
电源电压DC 5.00 V, 5.50 V max
时钟频率 40.0MHz max
RAM大小 3968 B
位数 8
耗散功率 1000 mW
I/O引脚数 25
存取时间 40.0 µs
内核架构 PIC
内核子架构 PIC18
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 4.2 V
安装方式 Through Hole
引脚数 28

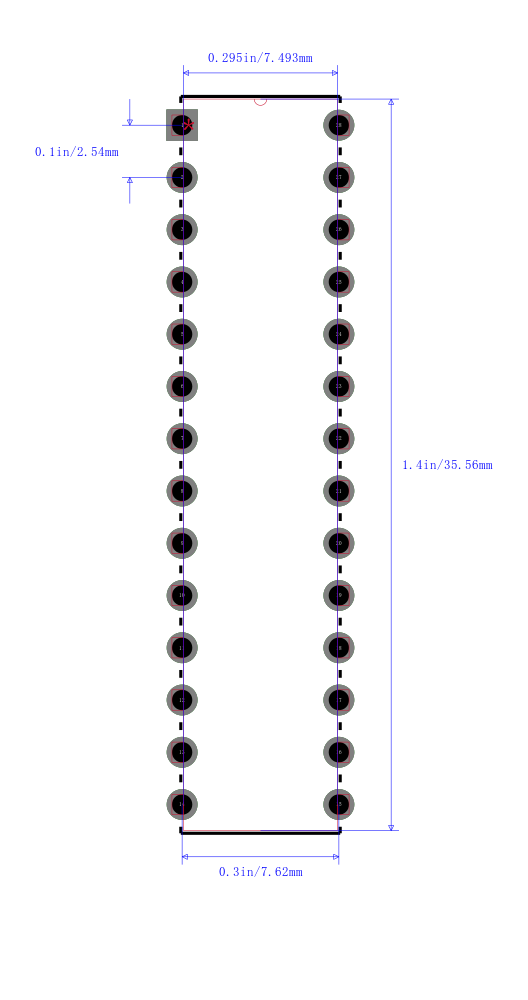

封装 SPDIP-28
封装 SPDIP-28
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC18F2525-E/SP Microchip 微芯 | 当前型号 | 当前型号 |
PIC18F2525-I/SO 微芯 | 类似代替 | PIC18F2525-E/SP和PIC18F2525-I/SO的区别 |
