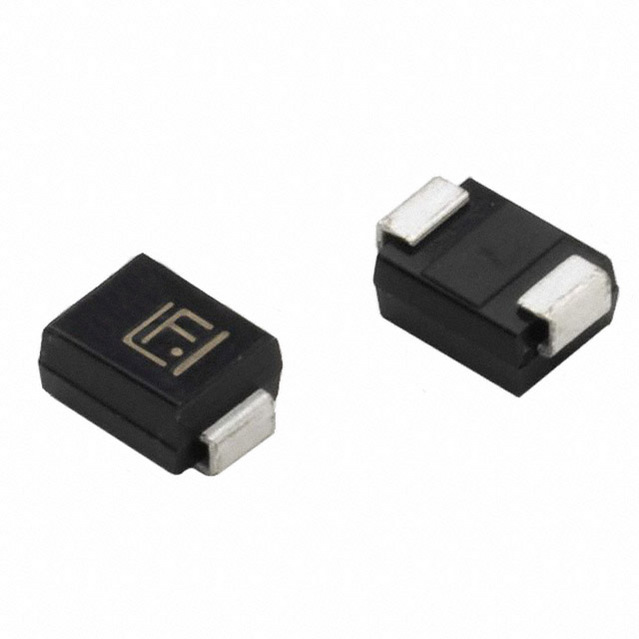

LITTELFUSE P6SMB400A. 二极管, TVS
The P6SMB series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
- .
- 500W Peak pulse power capability at 10x1000µs waveform
- .
- Built-in strain relief
- .
- Glass passivated junction
- .
- Low incremental surge resistance
- .
- Excellent clamping capability
- .
- 0.01% Repetition rate duty cycle
- .
- <1ps from 0V to VBR Minimum fast response time
- .
- <1µA above 12V Current IR
- .
- Available in unidirectional and bidirectional
- .
- -65 to 150°C Operating temperature range
工作电压 342 V
击穿电压 420 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 548 V
测试电流 1 mA
最大反向击穿电压 420 V
脉冲峰值功率 600 W
最小反向击穿电压 380 V
击穿电压 380 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
高度 2.24 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 安全, Industrial, 通用, Communications & Networking, Computers & Computer Peripherals, 通信与网络, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
P6SMB400A Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB400A-E3/52 威世 | 类似代替 | P6SMB400A和P6SMB400A-E3/52的区别 |
SMBJP6KE400A 美微科 | 类似代替 | P6SMB400A和SMBJP6KE400A的区别 |
SMBJ350A 力特 | 功能相似 | P6SMB400A和SMBJ350A的区别 |
