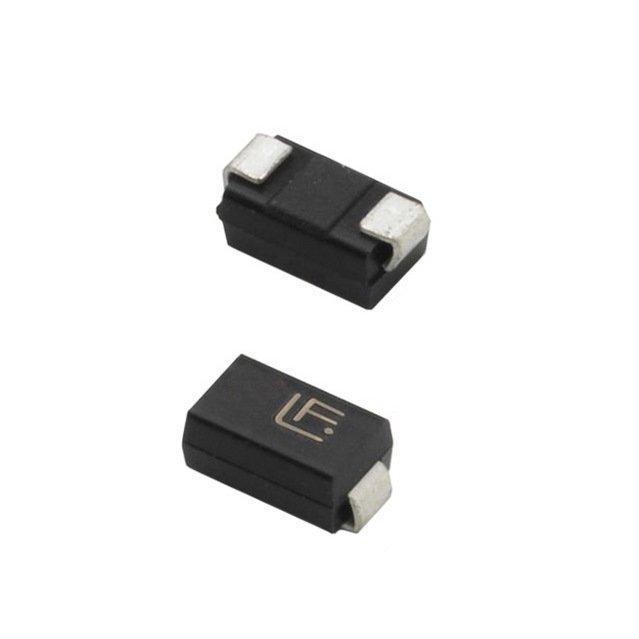

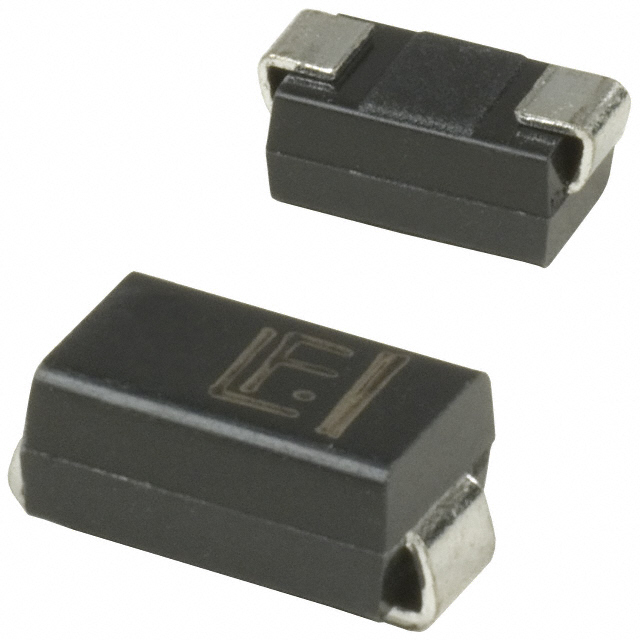

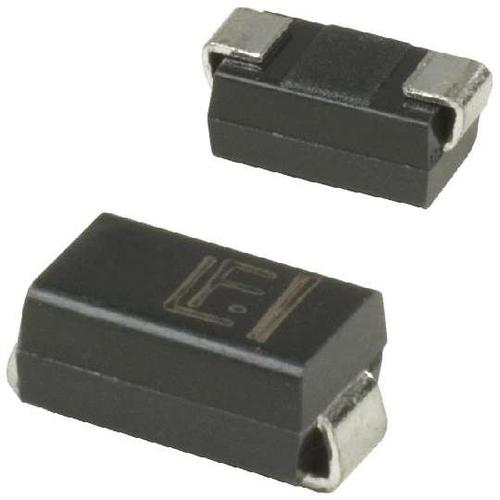

400 W 250 V 单向 通孔 瞬态电压抑制二极管
400W Surface Mount Transient Voltage Supressors
FEATURES
•RoHScompliant
•For surface mounted applications in order to optimize board space
•Low profile package
•Built-in strain relief
•Glass passivated junction
•Low Inductance
•Excellent clamping capability
•Repetition Rate duty cycle:0.01%
•Fast response time: typically less than 1.0ps from 0 Volts to VBR for unidirectional types
•Typical IR less than 1µA above 10V
•High temperature soldering: 250˚C/10 seconds at terminals
DEVICES FOR BIPOLAR APPLICATION
For Bidirectional use Suffix CA for types P4SMA6.8CA thru types P4SMA550CA
Electrical characteristics apply in both directions
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P4SMA250A Littelfuse 力特 | 当前型号 | 当前型号 |
P4SMA250A-E3/61 威世 | 功能相似 | P4SMA250A和P4SMA250A-E3/61的区别 |
P4SMA250A-M3/5A 威世 | 功能相似 | P4SMA250A和P4SMA250A-M3/5A的区别 |
