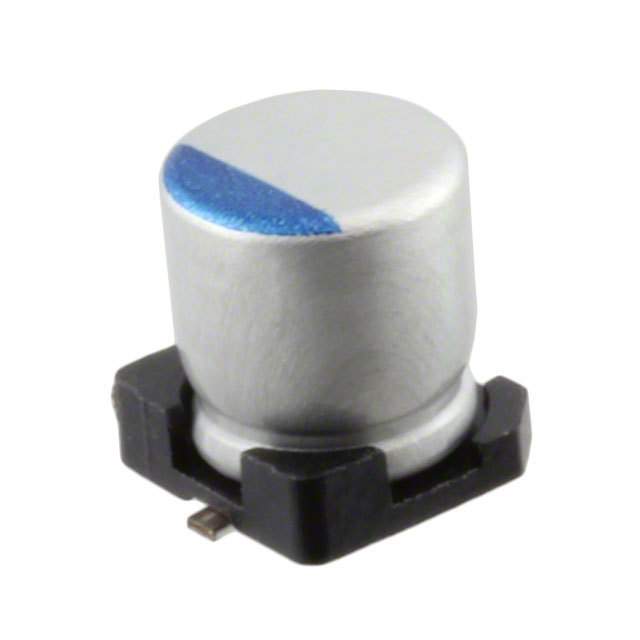

Cap Aluminum 82uF 16V 20% 6.3 X 8mm Cylindrical 2700mA 2000 hr 105℃ T/R
Look no further than the conductive polymer aluminum solid capacitor from , ideal for use in supporting changes in the load of an integrated circuit. It can withstand a voltage of 16 VDC. It has 2 terminals. This product is 8 mm tall with a diameter of 6.3 mm. Its leakage current is 262@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C.
额定电压DC 16.0 V
电容 82 µF
等效串联电阻ESR 24 mΩ
容差 ±20 %
纹波电流 2700 mA
纹波电流低频 2.7A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装 SMD
高度 8 mm
直径 6.30 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
