PFC250-1024F

PFC250-1024F图片1

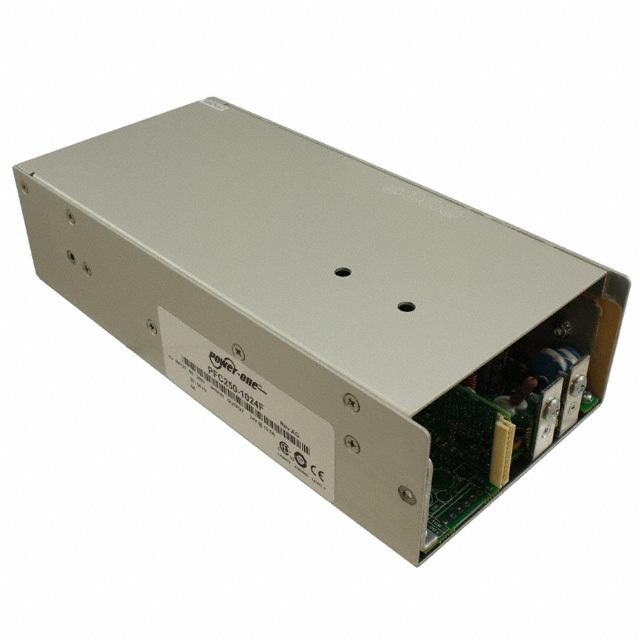

PFC250-1024F图片2
PFC250-1024F图片3
PFC250-1024F图片4
PFC250-1024F图片5
PFC250-1024F图片6
PFC250-1024F概述

BEL POWER SOLUTIONS INC 250W 1输出 嵌入式开关模式电源(SMPS), 24V dc, 10.5A

**PFC250 Series**

The Power One range of PFC250 AC-DC Converters offer a wide trange of outputs combining Power Factor Correction PFC, high-speed digital circuitry and high reliablibty. Suitable for use in data communications and industrial applications. These power supplies feature indendent current sharing across the outputs, thermal shutdown and provides full power output with only 300 linear feet per minute LFM forced air cooling.


得捷:
AC/DC CONVERTER 24V 250W


艾睿:
AC/DC Power Supply Single-OUT 24V 10.5A 250W


Allied Electronics:
250W; 1 Output; Embedded Switch Mode Power Supply SMPS; 24V dc; 10.5A


Chip1Stop:
AC/DC Power Supply Single-OUT 24V 10.5A 250W


Verical:
AC/DC Power Supply Single-OUT 24V 10.5A 250W


MASTER:
AC/DC Power Supply Single-OUT 24V 10.5A 250W. Integral fan.


Electro Sonic:
AC/DC Power Supply Single-OUT 24V 10.5A 250W. Integral fan.


PFC250-1024F中文资料参数规格
技术参数

额定功率 250 W

输出接口数 1

输出电压 24 V

输出电流 10.5 A

输出功率 250 W

隔离电压 2.6 kV

输入电压AC Max 264 V

输入电压AC Min 85 V

输出电流Max 10.5 A

输入电流Min 4.5 Arms

输出功率Max 250 W

额定功率Max 250 W

工作温度Max 70 ℃

工作温度Min 0 ℃

输入电压 85VAC ~ 264VAC

封装参数

安装方式 Rack

外形尺寸

长度 8.5 in

宽度 4.75 in

高度 2 in

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 ITE(商业)

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8504409530

数据手册

在线购买PFC250-1024F
型号: PFC250-1024F
制造商: BEL Power Solutions 贝儿电源
描述:BEL POWER SOLUTIONS INC 250W 1输出 嵌入式开关模式电源(SMPS), 24V dc, 10.5A
