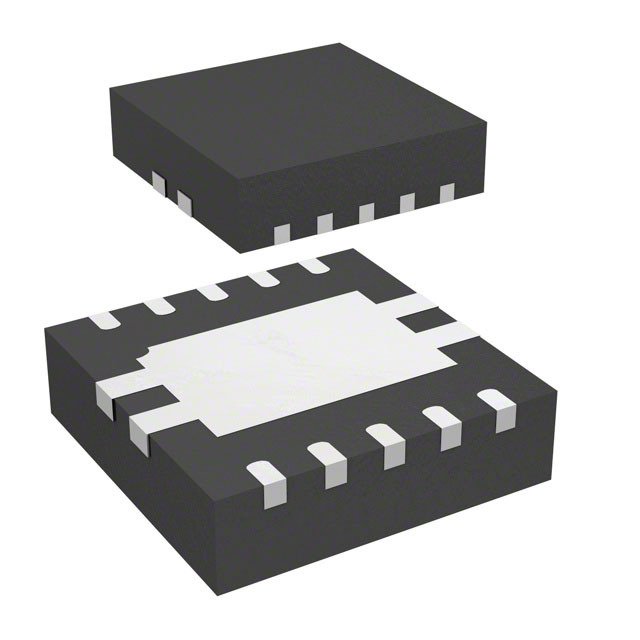

PM6644 系列 350 mA 3.47 V/可调 表面贴装 降压 稳压器 - DFN-10
Adjust the voltage level of your devices with this step down DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 0.35 A. It only needs a voltage of at least 4.5 V while not exceeding 25 V to effectively power your circuit. With an adjustable|fixed output that has a voltage of 0.9 to 8|3.47 V, this is power management at its best. Its switching regulator has a frequency of 200 to 600 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 3.47 V
输出电流 350 mA
静态电流 230 mA
开关频率 200kHz ~ 600kHz
输入电压Max 25 V
输入电压Min 4.5 V
输出电压Max 8 V
输出电流Max 0.35 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 25V
安装方式 Surface Mount
引脚数 10
封装 DFN-10
封装 DFN-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
