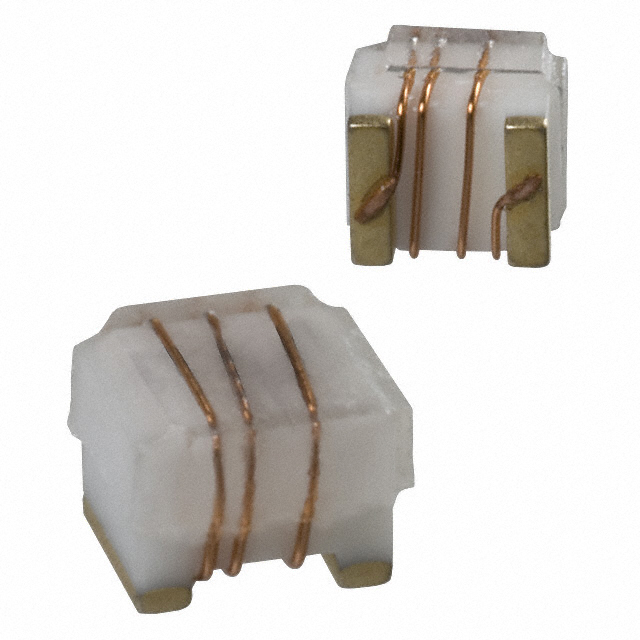

PM1008-3R3K-RC

高Q值的片式电感器 High Q Chip Inductors

3.3 µH 无屏蔽 绕线 器 185 mA 1.9 欧姆 1008（2520 公制）

得捷:
FIXED IND 3.3UH 185MA 1.9OHM SMD

立创商城:
3.3uH ±10% 185mA 3.24Ω

贸泽:
Fixed Inductors 3.3uH 10%

艾睿:
This chip PM1008-3R3K-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 2.7 mm long, 1.8 mm tall and 2.2 mm deep. This device is made with wirewound technology. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 55M Hz. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 185m A with a maximum resistance of 3.24 Ohm. It has an inductance of 3.3u H.

Chip1Stop:
Ind Chip Wirewound 3.3uH 10% 7.9MHz 22Q-Factor Ferrite 185mA 1008 T/R

Verical:
Inductor Chip Wirewound 3.3uH 10% 7.9MHz 22Q-Factor Ferrite 185mA 3.24Ohm DCR 1008 T/R

Newark:
# BOURNS JW MILLER  PM1008-3R3K-RC  Surface Mount High Frequency Inductor, PM1008 Series, 3.3 µH, 185 mA, 1008 [2516 Metric], Wirewound

Electro Sonic:
Inductor RF Wirewound 3.3uH 10% 7.9MHz 22Q-Factor Ferrite 0.185A 3.24Ohm DCR 1008 T/R
