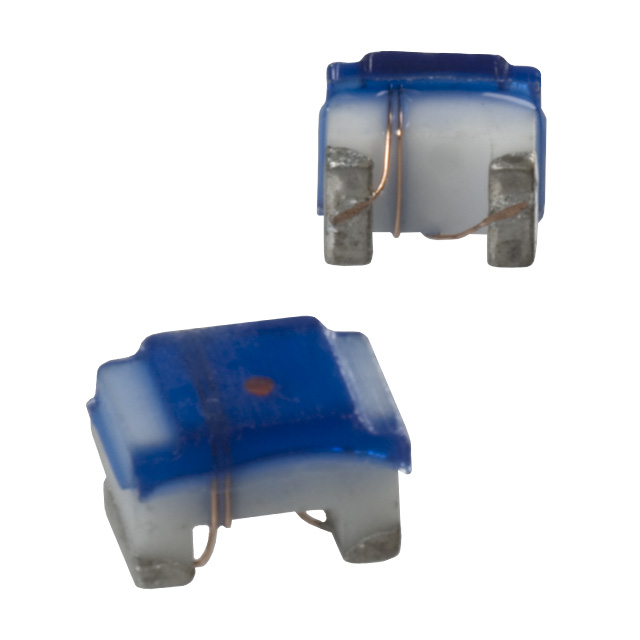

PM0805-68NK-RC

高Q值的片式电感器 High Q Chip Inductors

68 nH 无屏蔽 绕线 器 500 mA 270 毫欧 0805（2012 公制）

得捷:
FIXED IND 68NH 500MA 270MOHM SMD

立创商城:
68nH ±10% 500mA 380mΩ

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this chip PM0805-68NK-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 200M Hz, while its minimum self-resonant frequency is 1.45G Hz. It has an inductance of 68n H. This product is 2.3 mm long, 1.5 mm tall and 1.7 mm deep. This device utilizes wirewound technology. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 270m Ohm.

安富利:
Ind Chip Wirewound 68nH 10% 200MHz 60Q-Factor Alumina 500mA 0805 T/R

Chip1Stop:
Inductor Chip Wirewound 68nH 10% 200MHz 60Q-Factor Alumina 500mA 270mOhm DCR 0805 T/R

Verical:
Inductor Chip Wirewound 68nH 10% 200MHz 60Q-Factor Alumina 500mA 270mOhm DCR 0805 T/R

Electro Sonic:
Inductor RF Wirewound 0.068uH 10% 200MHz 60Q-Factor Alumina 0.5A 0.38Ohm DCR 0805 T/R
