PS2532L-1

Optocoupler DC-IN 1CH Darlington DC-OUT 4Pin PDIP SMD

DESCRIPTION

The PS2532-1, -2, -4 and , -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.

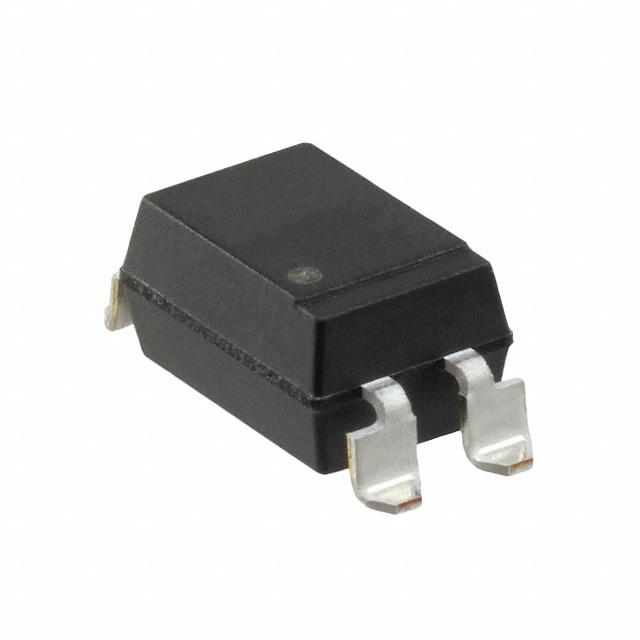

The PS2532-1, -2, -4 are in a plastic DIP Dual In-line Package and the PS2532L-1, -2, -4 are lead bending type Gull-wing for surface mount.

FEATURES

•  High collector to emitter voltage VCEO=300 V

•  High Isolation voltage BV =5 000 Vr.m.s.

•  High current transfer ratio CTR=4 000 % TYP.

•  High-speed switching tr,tf=100 µs TYP.

•  Ordering number of tape product: PS2532L-1-E3, E4, F3, F4, PS2532L-2-E3, E4

•  Safety standards

•  UL approved: File No. E72422 S

•  BSI approved: No. 8221/8222

•  CSA approved: No. CA 101391

•  NEMKO approved: No. P98101708

•  SEMKO approved: No. 9824187/01-02

•  DEMKO approved: No. 307863

•  FIMKO approved: No. F111397

•  VDE0884 approved Option

APPLICATIONS

•  Telephone, Exchange equipment

•  FAX/MODEM
