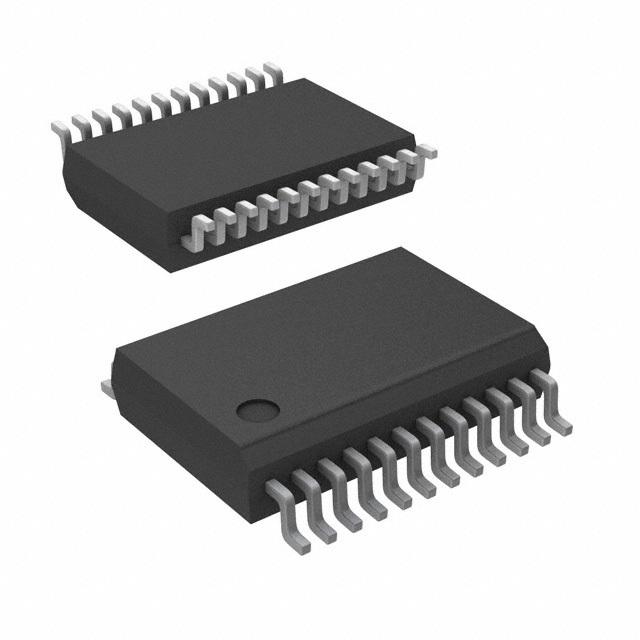

TEXAS INSTRUMENTS  PCF8575CDBE4  输入/输出扩展, 16bit, 400 kHz, I2C, 并行, SMBus, 4.5 V, 5.5 V, SSOP

The is a 16-bit I/O Expander for the two-line bidirectional bus I²C is designed for 4.5 to 5.5V VCC operation. The PCF8575C provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface serial clock SCL and serial data SDA. The device features a 16-bit quasi-bidirectional input/output I/O port P07-P00, P17-P10, including latched outputs with high-current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data-direction control signal. At power on, the I/Os are in 3-state mode. The strong pull-up to VCC allows fast-rising edges into heavily loaded outputs. This device turns on when an output is written high and is switched off by the negative edge of SCL. The I/Os should be high before being used as inputs. After power on, as all the I/Os are set to 3-state, all of them can be used as inputs.

.

Open-drain interrupt output

.

Compatible with most microcontrollers

.

400kHz Fast I²C bus

.

Address by 3 hardware address pins for use of up to 8 devices

.

Latched outputs with high-current drive capability for directly driving LEDs

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

10µA Maximum low standby-current consumption

.

Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
