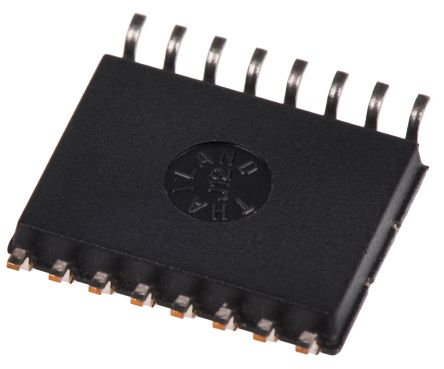

NXP PCF8591T/2,512. 芯片, 8位模数与数模转换器
模数转换器 8 位, Semiconductors
此 A/D 转换器带有四个模拟输入到单输出,还可进行数字到模拟的 8 位转换。 单电源、低功率设备,带包括电源监控和参考设置在内的典型应用。
得捷:
IC ADC/DAC 8BIT 11.1K 16SO
欧时:
NXP PCF8591T/2,512 数据采集电路, 16引脚 SOIC封装
贸泽:
数据采集ADC/DAC – 专业 ADC/DAC 8-BIT I2C
e络盟:
芯片, 模数/数模转换器, 8位, I2C, 16SOIC
艾睿:
Codec General Purpose 1-CH 8bit 3.3V/5V Automotive 16-Pin SO Tube
安富利:
Codec General Purpose 1-CH 8bit 3.3V/5V 16-Pin SO Tube
Verical:
Codec General Purpose 1-CH 8bit 3.3V/5V Automotive 16-Pin SO Tube
Newark:
The PCF8591T/2,512 is a 8-bit A/D and D/A Converter with a single-chip, single-supply low-power 8--bit CMOS data acquisition device with four analogue inputs, one analogue output and a serial I²C-bus interface. Three address pins A0, A1 and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C-bus without additional hardware. Address, control and data to and from the device are transferred serially via the two-line bi-directional I²C-bus. The functions of the device include analogue input multiplexing, on-chip track and hold function, 8-bit analogue-to-digital conversion and an 8--bit digital-to-analogue conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.
DeviceMart:
IC ADC/DAC 8-BIT I2C 16-SOIC
电源电压DC 2.50V min
通道数 1
针脚数 16
位数 8
耗散功率 300 mW
采样率 11.1 ksps
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
数模转换数DAC 1
电源电压 2.5V ~ 6V
电源电压Max 6 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 10.5 mm
宽度 7.6 mm
高度 2.45 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 System Monitoring, 工业, 系统监控, 自动化与过程控制, Automation & Process Control, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCF8591T/2,512 NXP 恩智浦 | 当前型号 | 当前型号 |
PCF8591T/2,518 恩智浦 | 完全替代 | PCF8591T/2,512和PCF8591T/2,518的区别 |
PCF8591P 恩智浦 | 类似代替 | PCF8591T/2,512和PCF8591P的区别 |
PCF8591P,112 恩智浦 | 功能相似 | PCF8591T/2,512和PCF8591P,112的区别 |
