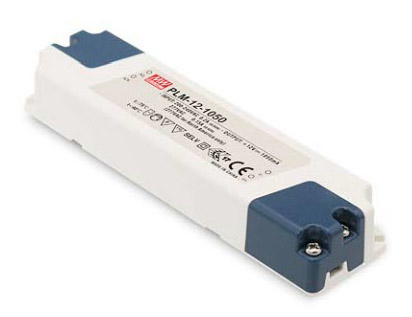

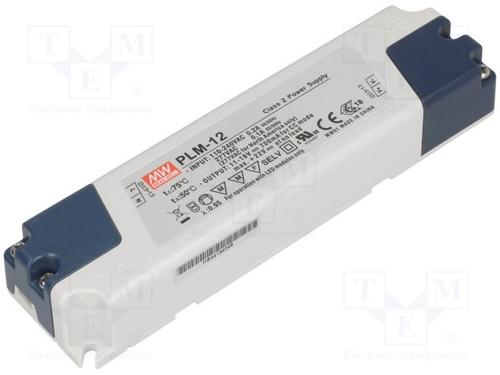

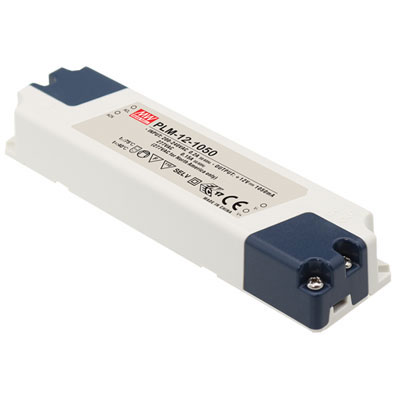

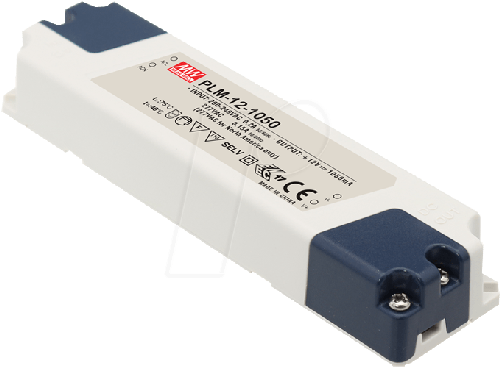

PLM-12-350

AC-DC Power Supply Single-OUT 22V to 36V 0.35A 12.6W 4Pin

PLM-12 is a 12W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-12 provides a high Power Factor value greater than 0.9. In addition, with the low no load power consumption below 0.5W, and the setup time less than 500mS, PLM-12 is complied with the ErP regulation required by European Union for lighting fixtures.

PLM-12 is a class II without FG pin power unit housed with the UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types of models with different input voltage range are offered: PLM-12 series, which operates from 110-295VAC, and PLM-12E series, which operates from 180-295VAC. These two series are both constant current output design, supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively.

230 VAC only or Full range up to 295 VAC models available

Built-in active PFC function

Constant current design

Short circuit protection

Cooling by free air convection

Fully isolated plastic case

Class II power unit, no FG

Class 2 power unit blank type only

No load power consumption less than 0.5 W

High reliability, low cost

2 years warranty
