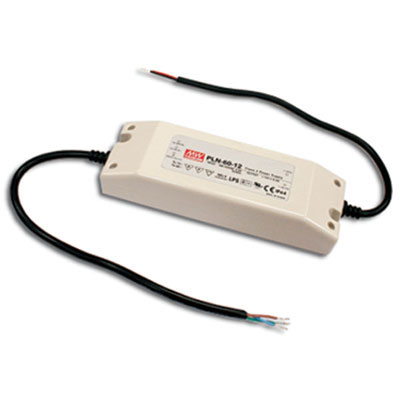

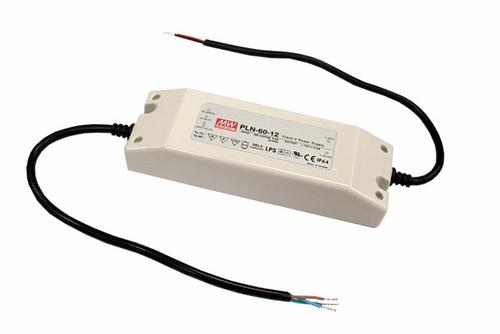

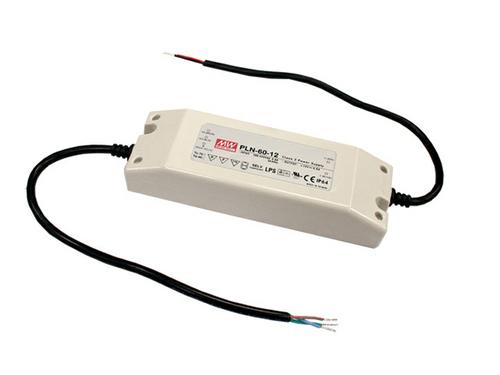

60 W 单组输出 36 V AC/DC LED 电源 带内置PFC功能
**Features:**
* Universal AC Input/Full Range Up to 295 VAC
* Fully Isolated Plastic Case with IP64 Level
* Built-In Constant Current Limiting Circuit with Adjustable OCP Level
* Built-In Active PFC Function
* Pass LPS
* IP64 Design for Indoor or Outdoor Installations
* Cooling by Free Air Convection
* 100% Full Load Burn-In Test
* High Reliability
* Suitable for LED Lighting and Moving Sign Applications
* Compliance to Worldwide Safety Regulations for Lighting
* 2-Year Factory Warranty
额定功率 61 W
输出接口数 1
输出电压 36 VDC
输出电流 1.7 A
通道数 1
输入电流 0.8 A
输出功率 61.2 W
输入电压DC Max 417 V
输入电压DC Min 127 v
输入电压AC Max 295 v
输入电压AC Min 90 v
输出电压Max 36 V
输出电压Min 25.2 V
输出电流Max 1700 mA
输出电流Min 0 A
输入电流Min 0.8 A
输出功率Max 61 W
工作温度Max 50 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.417VDC
输入电压 100VAC ~ 295VAC
引脚数 5
封装 Plastic Enclosure
封装 Plastic Enclosure
重量 500 g
工作温度 -30℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
