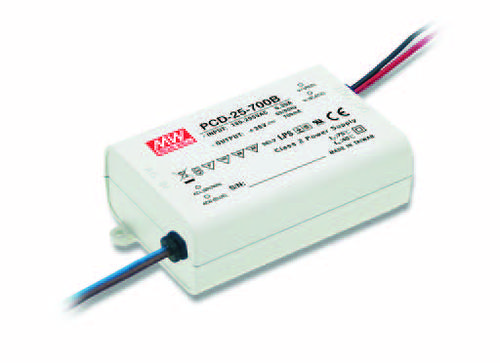

PCD 系列 25.2 W 0.70 A 相位可调光 驱动器 北美版
700mA 24 ~ 36V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 输出
得捷:
LED DRVR CC AC/DC 24-36V 700MA
艾睿:
AC/DC Power Supply Single-OUT 24V to 36V 0.7A 25.2W 4-Pin
Allied Electronics:
Power Supply; AC-DC; 36V@0.7A; 90-135V In; Enclosed; Panel Mnt; LED Driver; PCD Series
Jameco:
Enclosed Switching LED Power Supply 24 to 36 Volts 0.7 Amps 25.2 Watts Phase Dimmer
Chip1Stop:
AC/DC Power Supply Single-OUT 24V to 36V 0.7A 25.2W 4-Pin
MASTER:
AC-DC Single output LED driver Constant Current CC; Output 0.7A at 24-36Vdc; AC phase-cut dimming
Online Components:
AC/DC Power Supply Single-OUT 24V to 36V 0.7A 25.2W 4-Pin , Useable w/some AC Wall Dimmers
Electro Sonic:
AC-DC Single output LED driver Constant Current CC; Output 0.7A at 24-36Vdc; AC phase-cut dimming
CDI:
LED Driver CC 25W 700mA Linear 24-36Vdc 90-135Vac PFC Phase-Cut Dimming IP30 Plastic Enclosure
频率 63 Hz
额定功率 25 W
输出接口数 1
输出电压 24V ~ 36V
输出电流 0.7 A
输入电流 0.6 A
输出功率 25.2 W
输出电流Max 700 mA
输入电流Min 0.6 A
输出功率Max 25.2 W
工作温度Max 60 ℃
工作温度Min -30 ℃
输入电压 90VAC ~ 135VAC
安装方式 Screw
引脚数 4
封装 Plastic Enclosure
宽度 57 mm
高度 29.5 mm
封装 Plastic Enclosure
工作温度 -30℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
