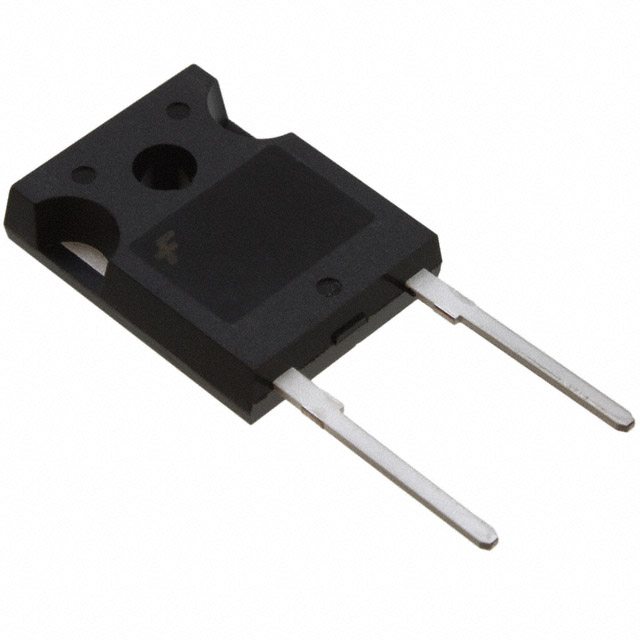

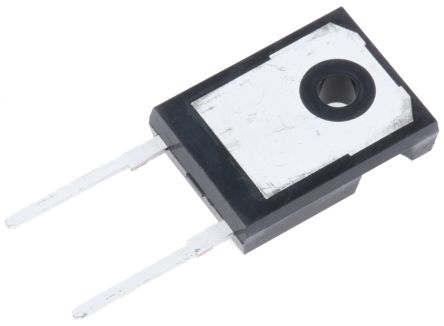

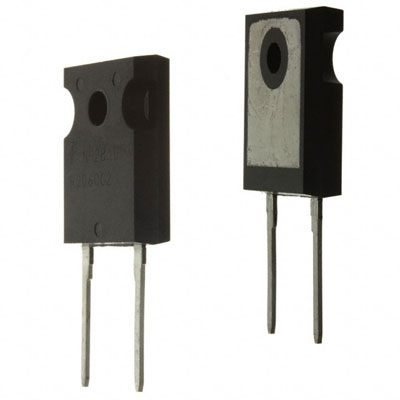

FAIRCHILD SEMICONDUCTOR RHRG30120 快速/超快功率二极管, 软恢复, 单, 1.2 kV, 30 A, 3.2 V, 75 ns, 300 A
The is a Hyperfast Diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended to be used as freewheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- High reliability
- .
- Avalanche energy rated
- .
- 1200VDC Blocking voltage
- .
- 125W Maximum power dissipation
- .
- 1.2°C/W Junction to case thermal resistance
额定电压DC 1.20 kV
额定电流 30.0 A
输出电流 ≤30.0 A
正向电压 3.2 V
极性 Standard
热阻 1.2℃/W RθJC
反向恢复时间 85 ns
正向电流 30 A
最大正向浪涌电流（Ifsm） 300 A
正向电压Max 3.2 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 TO-247-2
长度 15.8 mm
宽度 4.82 mm
高度 20.8 mm
封装 TO-247-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RHRG30120 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
DSEI60-12A IXYS Semiconductor | 功能相似 | RHRG30120和DSEI60-12A的区别 |
DSEI30-12A IXYS Semiconductor | 功能相似 | RHRG30120和DSEI30-12A的区别 |
DSEP30-12A IXYS Semiconductor | 功能相似 | RHRG30120和DSEP30-12A的区别 |
