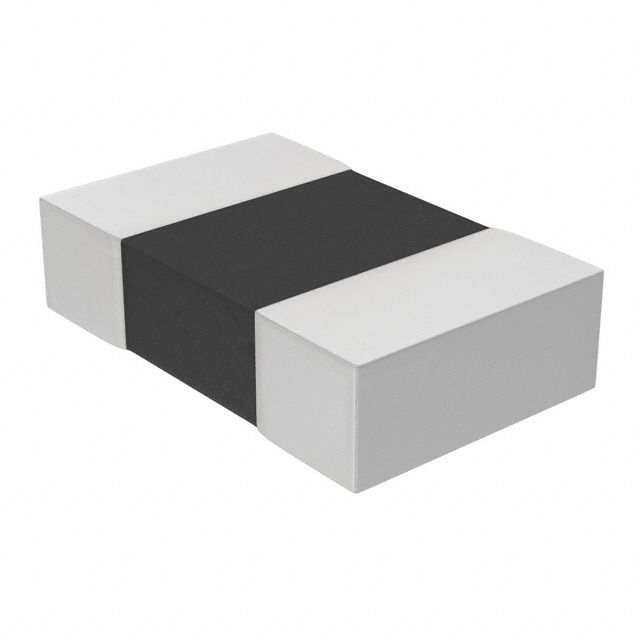

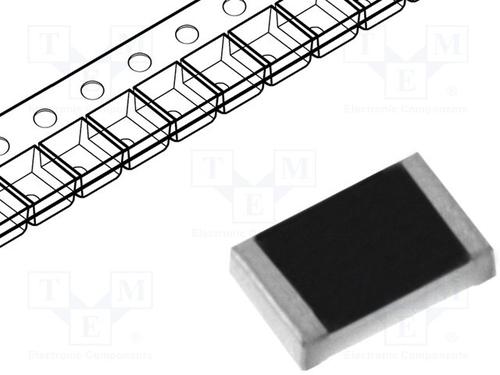

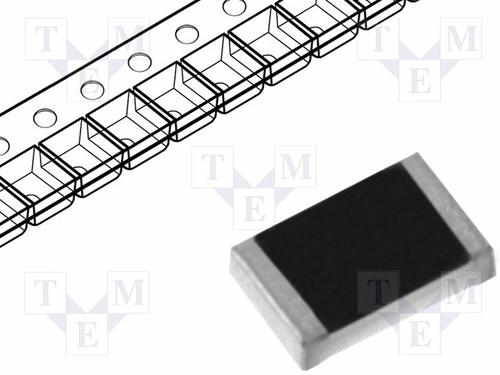

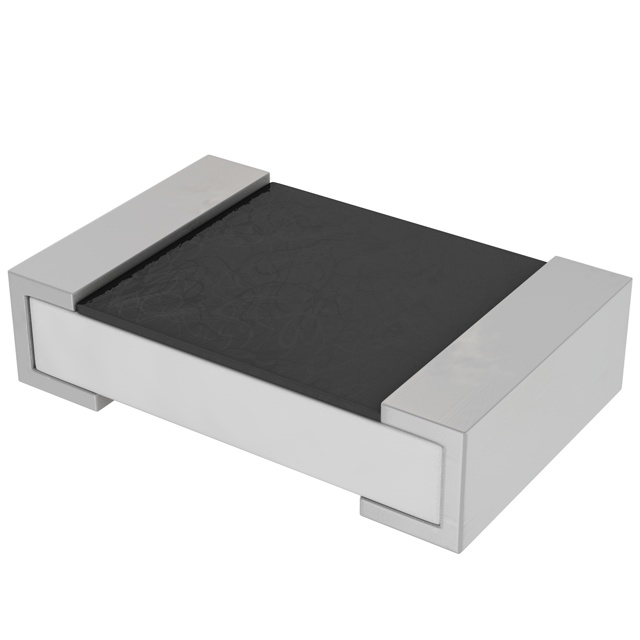

RC 系列 0805 0.125 W 820 kOhms 5% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 820K OHM 5% 1/8W 0805
立创商城:
820kΩ ±5% 125mW
e络盟:
SMD片式电阻, 厚膜, 0805 [2012公制], 820 kohm, RC系列, 150 V, 厚膜, 125 mW
艾睿:
This is a RC0805JR-07820KL fixed single surface-mount resistor from Yageo. This product has a resistance value of 820K Ohm. This dependable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep.
安富利:
Res Thick Film 0805 820K Ohm 5% 1/8W ±100ppm/°C Molded SMD Paper T/R
Chip1Stop:
Res Thick Film 2.0 x 1.2 mm 820K Ohm 5% 0.125W1/8W 100ppm/ C Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 0805; 820kΩ; 0.125W; ±5%; -55÷155°C
Newark:
# YAGEO PHYCOMP RC0805JR-07820KL Surface Mount Thick Film Resistor, RC Series, 820 kohm, 125 mW, - 5%, 150 V
儒卓力:
**RC0805 820K 5% 0,125W TK100 **
Win Source:
RES SMD 820K OHM 5% 1/8W 0805
额定电压DC 150 V
容差 ±5 %
额定功率 0.125 W
产品系列 RC
电阻 820 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 150 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.5 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 5000
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0805JR-07820KL Yageo 国巨 | 当前型号 | 当前型号 |
9C08052A8203JLHFT 国巨 | 完全替代 | RC0805JR-07820KL和9C08052A8203JLHFT的区别 |
RC0805JR-07820K 国巨 | 完全替代 | RC0805JR-07820KL和RC0805JR-07820K的区别 |
MC01W08055820K Multicomp | 功能相似 | RC0805JR-07820KL和MC01W08055820K的区别 |
