RT-375-3/8-X-STK概述

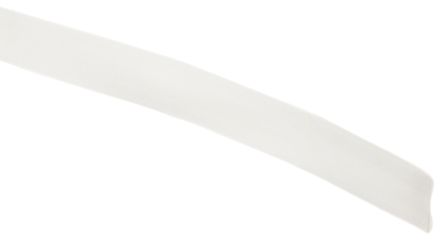

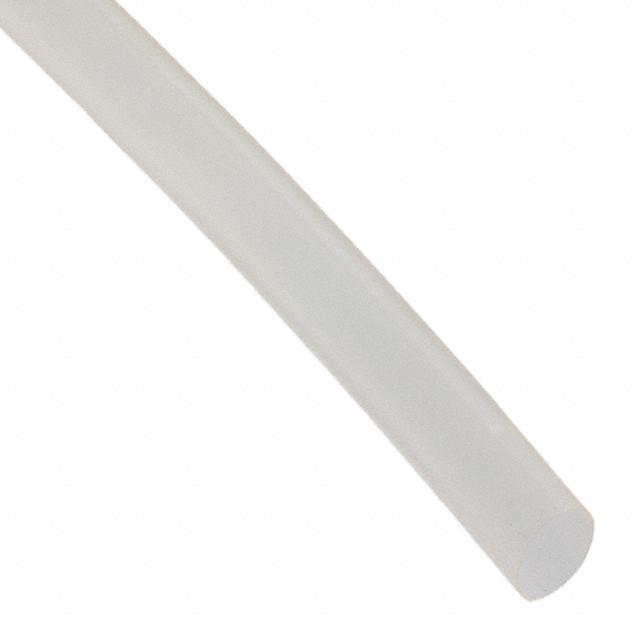

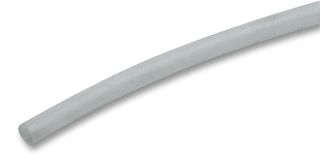

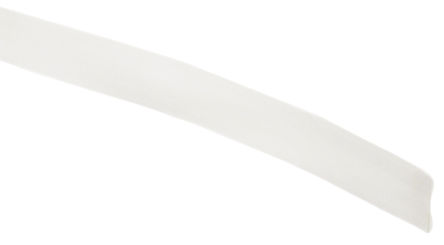

RT-375 热收缩管道 2:1透明、高阻燃,改良含氟聚合物热缩套管。 透明、清晰,非常适用于保护电缆束标识,以避免机械性或化学性的破坏。### 特点和优势• 极端清晰 • 高度阻燃 • 长度 1.2m • 温度额定值 - 55 到 +135°C" ### 认可UL 文件 E35586### 标准UL VW-1,满足 MIL-DTL-23053/18### 无卤素

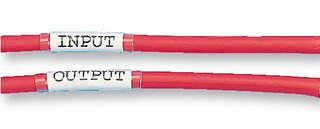

The is a clear colour flexible Heat-shrink Tubing made of fluoropolymer with single thin-wall. This Heat-shrink Tubing is deigned from modified fluoropolymer whose properties include toughness, chemical resistance and high-temperature performance. Ideal for protection of wire and cable markers subject to abuse, bundling and jacketing of wires and cables to protect them from mechanical and chemical abuse while permitting full inspectability of the item covered and protection of electronic components without losing the ability to identify the part.

.
Resistant to abrasion, fluids, mechanical damage and strain
.
Splash protection fluid resistance
RT-375-3/8-X-STK中文资料参数规格
技术参数

易燃性等级 UL VW-1

工作温度Max 150 ℃

工作温度Min -55 ℃

外形尺寸

长度 1.22 m

内径尺寸 9.5 mm

物理参数

颜色 Clear

工作温度 -55℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Box

制造应用 Industrial, Consumer Electronics

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 3926909980

数据手册

在线购买RT-375-3/8-X-STK
型号: RT-375-3/8-X-STK
描述:RT-375 热收缩管道 2:1 透明、高阻燃,改良含氟聚合物热缩套管。 透明、清晰,非常适用于保护电缆束标识,以避免机械性或化学性的破坏。 ### 特点和优势 • 极端清晰 • 高度阻燃 • 长度 1.2m • 温度额定值 - 55 到 +135°C" ### 认可 UL 文件 E35586 ### 标准 UL VW-1,满足 MIL-DTL-23053/18 ### 无卤素
替代型号RT-375-3/8-X-STK
型号/品牌 代替类型 替代型号对比

RT-375-3/8-X-STK

TE Connectivity 泰科

当前型号

当前型号

RT-375-1/4-X-STK

泰科

完全替代

RT-375-3/8-X-STK和RT-375-1/4-X-STK的区别
