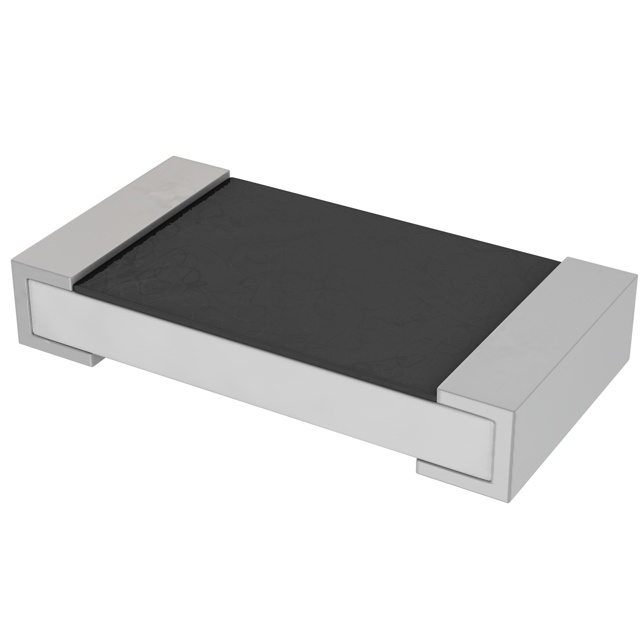

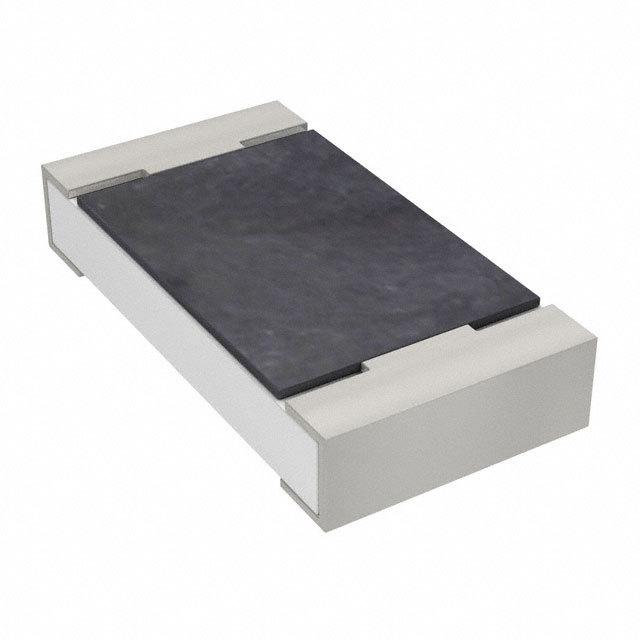

RC 系列 1206 0.25 W 178 kΩ 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
立创商城:
178kΩ ±1% 250mW
得捷:
RES 178K OHM 1% 1/4W 1206
艾睿:
Use this RC1206FR-07178KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This durable part has a power rating of 0.25 1/4 W. This product has a resistance value of 178K Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with thick film technology. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.
安富利:
General Purpose Chip Resistor Thick Film 1206 178kOhm 1% Paper T/R
TME:
Resistor: thick film; SMD; 1206; 178kΩ; 0.25W; ±1%; -55÷155°C
儒卓力:
**RC1206 178K 1% 0,25W **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 178 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-07178KL Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A1783FKHFT 国巨 | 完全替代 | RC1206FR-07178KL和9C12063A1783FKHFT的区别 |
AR1206FR-07178KL 国巨 | 功能相似 | RC1206FR-07178KL和AR1206FR-07178KL的区别 |
RC1206FR-07178K 国巨 | 功能相似 | RC1206FR-07178KL和RC1206FR-07178K的区别 |
