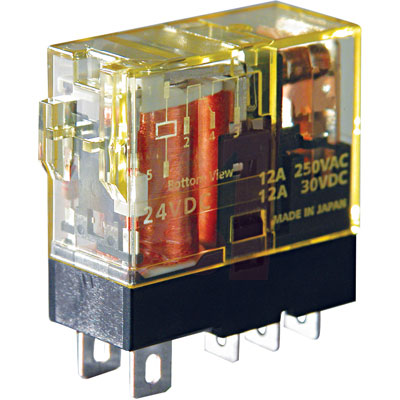

RJ1S-C-A120

IDEC  RJ1S-C-A120  继电器, PCB安装, SPST, 120V, 插入式

* Compact and rugged power relays. Large switching capacity

* Compact housing only 12.7 mm wide.

* Large contact rating

RJ1 1-pole: 16A UL general use rating @250V AC

RJ2 2-pole: 8A

* Non-polarized LED indicator available on blade type. ’s unique light guide structure enables high visibility of coil status from any direction.

* The smallest width for 2-pole/bifurcated contact relay

* Excellent electrical and mechanical life.

Electrical life: 200,000 operations AC load

Mechanical life: 30 million operations AC coil

* RoHS directive compliant EU directive 2002/95/EC. Contains no lead, cadmium, mercury, hexavalent chromium, PBB or PBDE.

* Diode model:

Diode reverse withstand voltage: 1000V

* UL recognized, CSA certified, EN compliant.
