开关电源 66W 5V/6A 12V/3A
AC/DC Power Supply Dual-OUT 5V/12V 8A/4A 66W 7-Pin
贸泽:
开关电源 66W 5V/6A 12V/3A
艾睿:

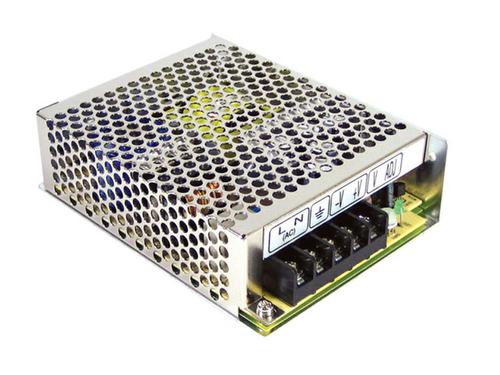

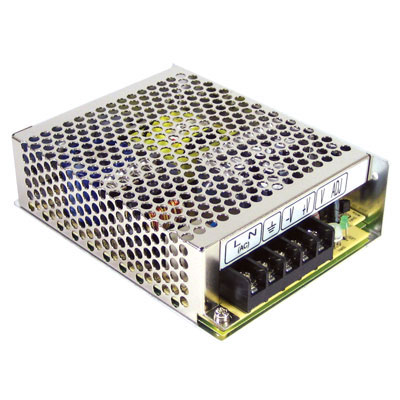

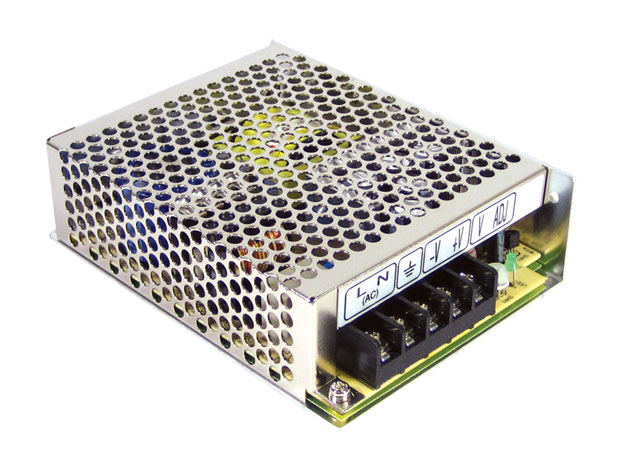

Safely convert alternating currents into direct currents that your electronic devices can make use of with this RID-65A AC to DC power supply from Mean-Well USA, Inc.. It has a voltage of 5|12 V and maximum output power of 66 W. This part&s;s 2 outputs can handle a current up to 8|4 A. This part has a minimum operating temperature of -25 °C and a maximum of 70 °C.
Jameco:
AC to DC Power Supply Dual Output 5 Volt 12 Volt 8 Amp 4 Amp 66 Watt
TME:
Pwr sup.unit: switched-mode; modular; 66W; 5VDC; 129x97x38mm; 440g
MASTER:
AC/DC Power Supply - 2 Outputs - 5V/12V@8A/4A - 66W
Online Components:
AC/DC Power Supply Dual-OUT 5V/12V 8A/4A 66W 7-Pin
CDI:
AC/DC 65W 5, 12V Dual Output Power Supply, Enclosed
Electro Sonic:
AC/DC Power Supply - 2 Outputs - 5V/12V@8A/4A - 66W
额定功率 66 W
输出接口数 2
输出电压 5 VDC
输出电流 8 A
输出功率 66 W
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 V
输入电压AC Min 88 V
输入电流Min 2 A
输出功率Max 66 W
工作温度Max 70 ℃
工作温度Min -25 ℃
电源电压 88.264VAC, 125.373VDC
输入电压 88VAC ~ 264VAC
引脚数 7
长度 5.08 in
宽度 3.86 in
高度 1.5 in
重量 440 g
工作温度 -25℃ ~ 70℃
RoHS标准 RoHS Compliant
ECCN代码 EAR99
HTS代码 8504409520
