可重触发单稳态触发器 RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
If you are looking for a way to get notified in the event a condition is met within your project, the monostable multivibrator from Texas Instruments can easily accomplish this task. This monostable multivibrator has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 4.75V ~ 5.25V
输出电流 8 mA
位数 2
电压波节 5.00 V
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16

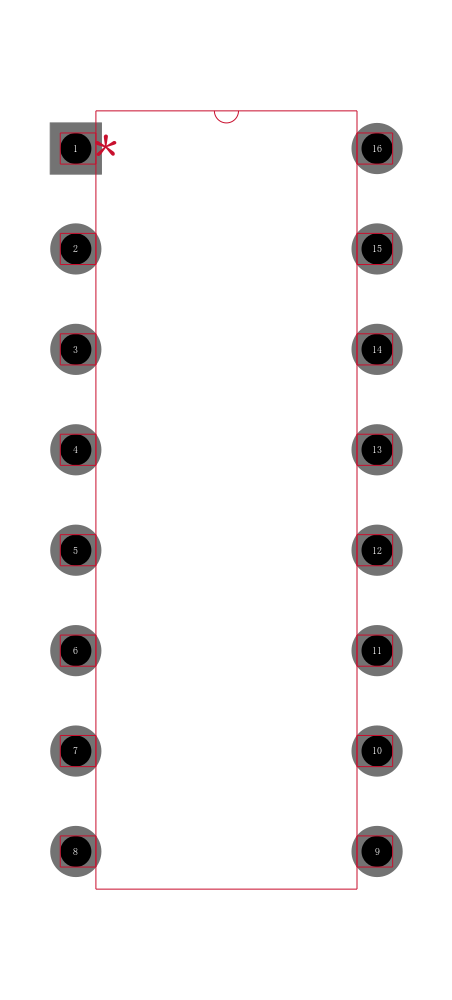

封装 PDIP-16
宽度 6.35 mm
封装 PDIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS123NE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS123N 德州仪器 | 完全替代 | SN74LS123NE4和SN74LS123N的区别 |
SN74LS123N3 德州仪器 | 完全替代 | SN74LS123NE4和SN74LS123N3的区别 |
SN74LS123J 德州仪器 | 完全替代 | SN74LS123NE4和SN74LS123J的区别 |
