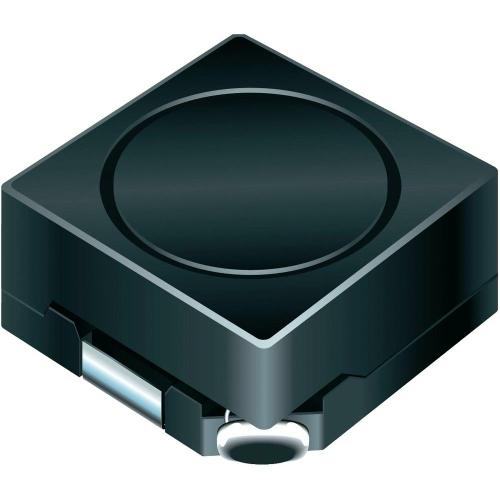

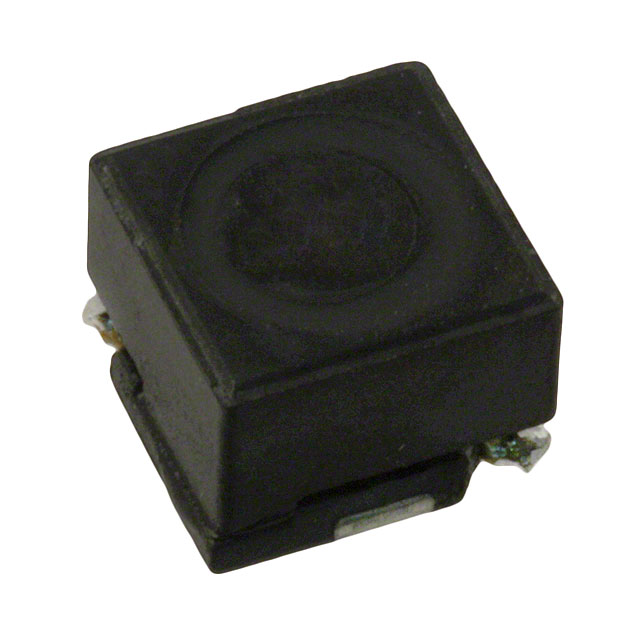

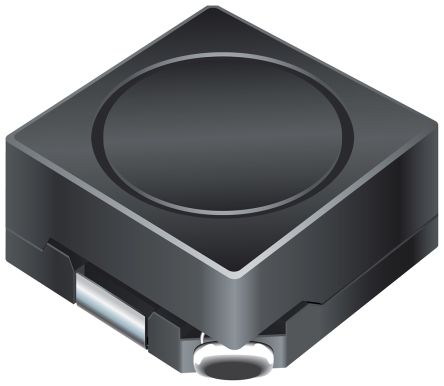

BOURNS SRR0604-331KL 表面贴装功率电感器, SRR0604系列, 330 µH, ± 10%, 屏蔽, 2.1 ohm, 200 mA
SRR0604 系列磁性屏蔽线绕扼流圈
提供 E6 系列
低装置高度为 4.8 mm
高电流
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
欧时:
Bourns SRR0604 系列 屏蔽 铁氧体芯材 330 μH 绕线贴片电感器 SRR0604-331KL, 200mA Idc Q:18
得捷:
FIXED IND 330UH 200MA 2.1OHM SMD
立创商城:
330uH ±10% 200mA 2.1Ω
贸泽:
Fixed Inductors 330uH 10% SMD 0604
e络盟:
功率电感SMD, 330 µH, 200 mA, 屏蔽, 280 mA, SRR0604 Series, 6.5mm x 6.5mm x 4.6mm
艾睿:
Save valuable space on a PCB with this power SRR0604-331KL surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with wirewound technology. It has a tolerance of 10%. This product is 6.7 mm long, 4.8 mm tall and 6.7 mm deep. It has an inductance of 330u H. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 2.1 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 7M Hz.
安富利:
Ind Power Shielded Wirewound 330uH 10% 1KHz 18Q-Factor Ferrite 200mA T/R
TME:
dławik bourns
Verical:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 18Q-Factor Ferrite 200mA 2.1Ohm DCR T/R
Newark:
# BOURNS SRR0604-331KL Surface Mount Power Inductor, SRR0604 Series, 330 H, 10%, Shielded, 2.1 ohm, 200 mA
MASTER:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 18Q-Factor Ferrite 200mA 2.1Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 18Q-Factor Ferrite 200mA 2.1Ohm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 18Q-Factor Ferrite 200mA 2.1Ohm DCR T/R
额定电流 200 mA
容差 ±10 %
电感 330 µH
自谐频率 7 MHz
Q值 18.0
电阻 2.1 Ω
电感公差 ±10 %
测试频率 1 kHz
电阻DC) 2.1 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 2.1 Ω
安装方式 Surface Mount
封装 2525
长度 6.5 mm
宽度 6.5 mm
高度 4.8 mm
封装 2525
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
